A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.
Open access
Remove the entire top to build and route with zero hindrance

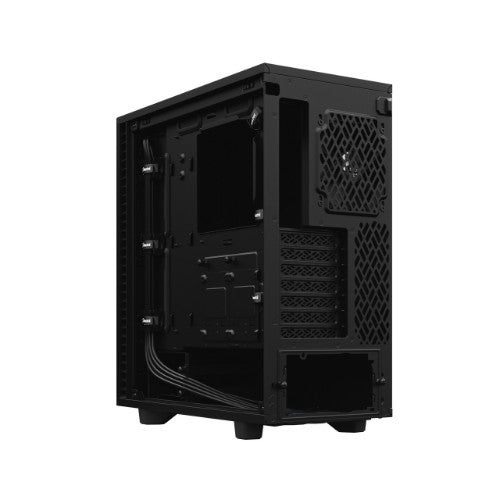

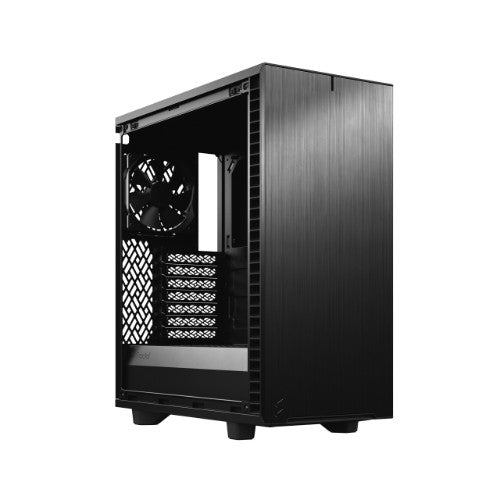

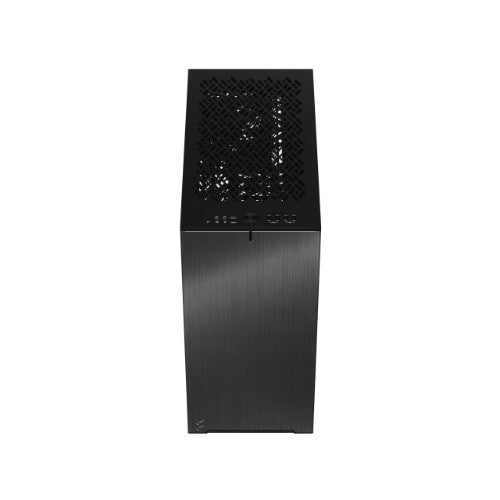

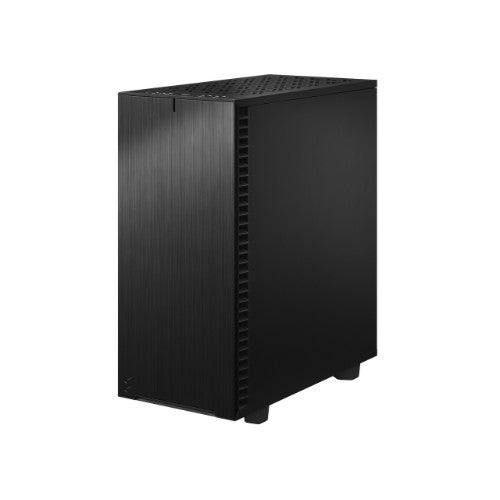

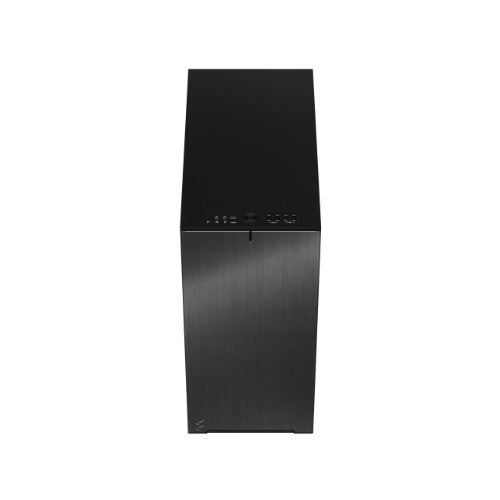

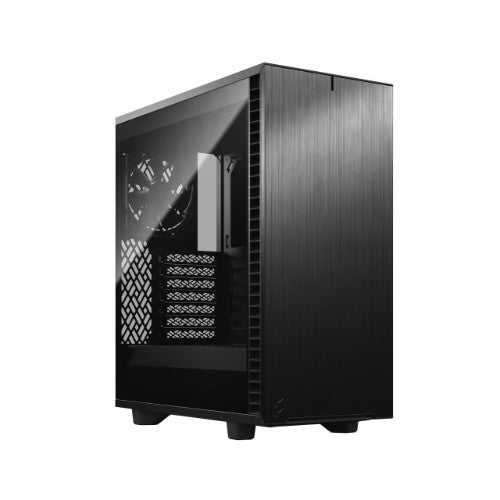

Fractal Design Define 7 Compact Midi Tower Black
Part number
FD-C-DEF7C-01
$183.31 CAD
Define 7 Compact, 39.3L, 2 x 3.5"/2.5" drive mount, 7 expansion slots, ATX / mATX / Mini-ITX, w/o PSU
Key Features
- Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
- Fits GPUs up to 360 mm with a 240 mm radiator in the top
- Top panel effortlessly swaps from solid steel to filtered ventilation
Reasons To Buy
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplateMore in store
A pair of SSDs are easily mounted straight on the PSU shroudFront, top and base
Easy-to-clean high airflow nylon filtersDescription
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.
Open access
Remove the entire top to build and route with zero hindrance
Specifications
| Design | |
|---|---|
| Volume | 39.3 L |
| Form factor | Midi Tower |
| Type | PC |
| Material | Aluminum, Steel |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Micro-ITX |
| Product colour | Black |
| Anti-dust filter | Yes |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of external 5.25" bays | 0 |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Rack mounting | No |
| LED indicators | Yes |
| Illumination | No |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 6.65" (16.9 cm) |
| Maximum graphics card length | 13.4" (34.1 cm) |
| Maximum PSU length | 7.87" (20 cm) |
| On/off button | Yes |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Yes |
| On/off button | Yes |
| Power supply | |
| Power supply included | No |
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Number of power supply units | 1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator installed | No |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator installed | No |
| Rear radiator sizes supported | 120 mm |
| Top radiator installed | No |
| Top radiator sizes supported | 240 mm |
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Volume | 39.3 L |
| Width | 8.27" (210 mm) |
| Depth | 16.8" (427 mm) |
| Height | 18.7" (474 mm) |
| Weight | 19 lbs (8.61 kg) |
| Packaging data | |
| Package width | 12.2" (310 mm) |
| Package depth | 21.1" (536 mm) |
| Package height | 20.5" (521 mm) |
| Package weight | 24 lbs (10.9 kg) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Volume | 39.3 L |
| Harmonized System (HS) code | 84733080 |
