In stock
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

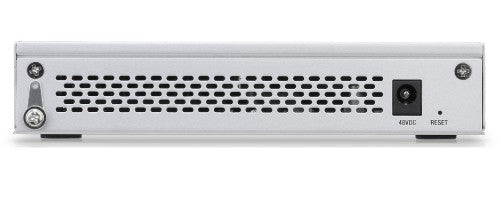

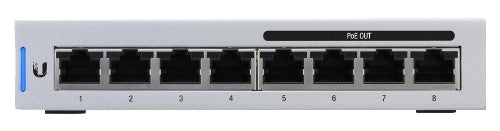

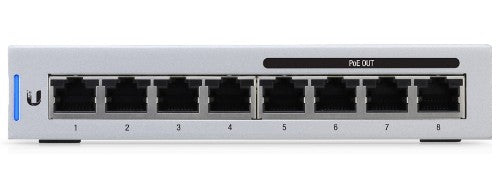

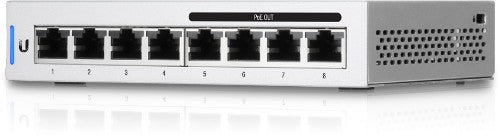

Ubiquiti UniFi Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
Part number
US-8-60W
$152.77 CAD
8x RJ-45, 4x IEEE 802.3af PoE, 16 Gbps, 11.9 Mpp, 148 x 99.5 x 30.7 mm, 432 g
Description
8-Port Managed Gigabit SwitchesThe US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Virtual LAN features | |
| VLAN support | Yes |
| Power | |
| Power connector | DC-in jack |
| Output current | 1.25 A |
| Output voltage | 48 V |
| Power consumption (max) | 12 W |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto-sensing | Yes |
| 10G support | No |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Throughput | 8 Mpps |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Security | |
| Security algorithms | 802.1x RADIUS |
| Design | |
| Product colour | Gray |
| Reset button | Yes |
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Speed |
| Housing material | Steel |
| Certification | ETSI300-019-1.4, CE, FCC, IC |
| Performance | |
| Processor frequency | 400 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage range | 57 - 44 V |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 5.83" (148 mm) |
| Depth | 3.92" (99.5 mm) |
| Height | 1.21" (30.7 mm) |
| Weight | 15.2 oz (432 g) |
| Packaging data | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| AC adapter included | Yes |
