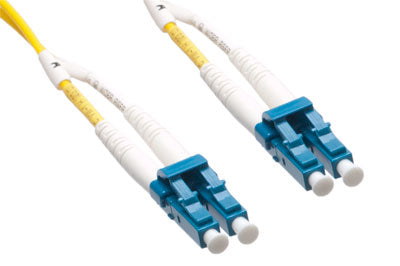

Axiom LCLCSD9Y-2M-AX InfiniBand/fibre optic cable 78.7" (2 m) 2x LC OFNR Yellow
Part number
LCLCSD9Y-2M-AX
$23.16 CAD
LC/LC Singlemode Duplex OS2 9/125 Fiber Optic Cable, Yellow
Description
Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infiniband, antenna & stacking cables. Whether you're upgrading components or installing a brand new network, you'll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.Specifications
| Features | |
|---|---|
| Cable length | 78.7" (2 m) |
| Connector material | Ceramic |
| Fibre optic type | OS2 |
| Return loss | 0.3 dB |
| Connector 1 | 2x LC |
| Connector 2 | 2x LC |
| Cable type | OFNR |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Jacket material | Polyvinyl chloride (PVC) |
| Insertion loss | 0.5 dB |
| Fiber mode structure | Single-mode |
| Data transfer rate | 100 Gbit/s |
| Operating temperature (T-T) | -5 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Certification | CE, RoHS |
| Brand compatibility | Any brand |
| Wavelengths supported | 850 nm |
| Product colour | Yellow |
| Connector 1 gender | Male |
| Technical details | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Cable length | 78.7" (2 m) |
| Cable diameter | 0.0709" (1.8 mm) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
