USB Extender over Cat5e/Cat6/Cat7 | Rugged Enclosure | ESD Protection | 2-Year Warranty

The USB2001EXTNA USB 2.0 extender over ethernet lets you extend a USB 2.0 connection over distances of up to 100-meters (330-feet), over standard Cat5e or Cat6 ethernet LAN cabling.

Hi-Speed USB performance

With data bandwidth of up to 480 Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 offers a fast, easy, and versatile solution for business or industrial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.

Plus, the 100m USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.

Compatible with older USB devices

Connecting older peripherals isn’t a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0 devices. The USB over ethernet hub enables almost any kind of USB device to be placed at remote locations away from the host computer.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales

The USB2001EXT2NA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

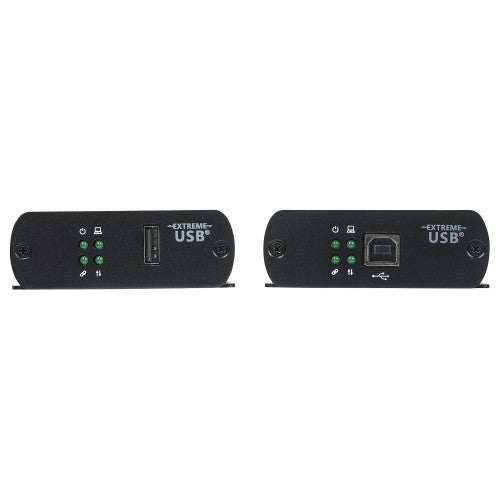

- USB EXTENDER: Extend 1 USB 2.0 connection up to 100m (330ft) over CAT5e/CAT6 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity.
- CONNECT REMOTE USB DEVICES: USB extenders are ideal to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, laser cutters, displays, or CCTV systems from a convenient location
- INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection

Technical details
Type	Console transmitter & receiver
Maximum transfer distance	3937" (100 m)
LED indicators	Activity, Link, Power
Housing material	Aluminum
Data transfer rate	480 Mbit/s
Product colour	Black
Cable types supported	Cat5e, Cat6, Cat7
Plug and Play	Yes
Certification	CE, FCC
Compliance certificates	RoHS
Ports & interfaces

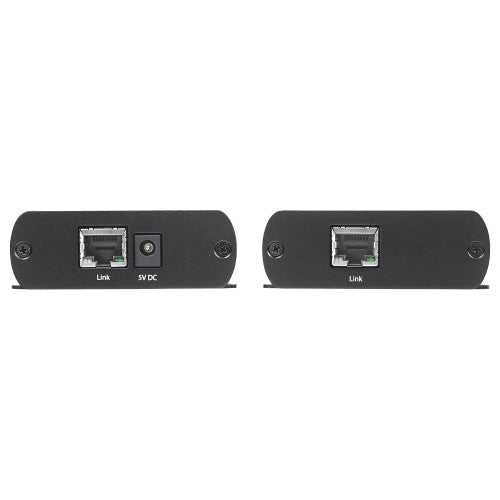

RJ-45 ports quantity	2
DC-in jack	Yes
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	1
Weight & dimensions
Width	2.95" (75 mm)
Depth	3.35" (85 mm)
Height	1.02" (26 mm)
Weight	4.41 oz (125 g)
Package width	7.68" (195 mm)
Package depth	9.57" (243 mm)
Package height	2.99" (76 mm)
Package weight	29.7 oz (841 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Colour
Product colour	Black

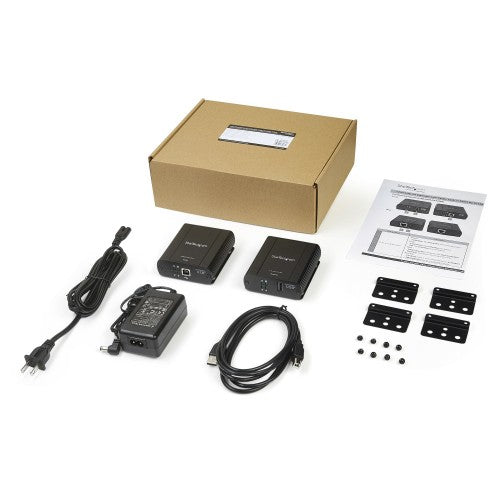

Packaging content
Quick start guide	Yes
Mounting kit	Yes
Cables included	AC, USB
AC adapter included	Yes
Power
Power consumption (typical)	18 W
Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	5 V
Output current	3 A
Power plug type	Type C
Logistics data
Master (outer) case width	16" (406 mm)
Master (outer) case length	22" (558 mm)
Master (outer) case height	10.6" (270 mm)
Products per master (outer) case	14 pc(s)
