USB extender over Cat5e, Cat6, Cat7 | Rugged Enclosure | 4 USB Ports| 2-Year Warranty

The 4-Port USB 2.0 over Ethernet Extender lets you extend USB devices over a Gigabit Ethernet Local Area Network (LAN) using dedicated Cat5e, Cat6, or Cat7 cabling up to 330ft (100m).

Reuse Existing Infrastructure

The USB over IP extender allows you to utilize your existing IP LAN so you can avoid running new infrastructure cabling. When channeling through multiple switches at 100m intervals, the maximum extension distance resets at each switch location, making it easy to span multiple floors in a home or office setting. You can even connect the local and remote units via a single Cat5e, Cat6, or Cat7.

Gigabit Connectivity

Unlike 10/100Mbps USB extenders, this versatile USB extender leverages the full data transfer potential of your USB 2.0 peripherals up to 480Mbps, to deliver low latency that enables support for extending isochronous devices such as webcams or microphones. Compatible with USB 2.0, and 1.1 devices with support for up to 600mA of power per port, it also functions as a USB over Ethernet hub

Rugged Design

A flexible solution for business or industrial applications, this rugged metal enclosure includes wall-mounting brackets and simple plug-and-play installation with no software or drivers required.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- USB 2.0 EXTENDER: Data transfer up to 480Mbps; Connect 4 USB devices using existing Gigabit Ethernet LAN switch(s)/IP network hardware as far as your network allows or connect transmitter/receiver directly over CAT5e/CAT6 RJ45 cable up to 330ft/100m
- CONNECT REMOTE USB DEVICES: Works as a 4 Port USB Hub at a remote location (receiver) to access devices like a printer, camera, plotter, keyboard/mouse, display, & CCTV system at a convenient location
- DURABLE USB EXTENDER: Extruded aluminum construction for high wear & tear industrial environments with mounting brackets incl; LEDs to monitor power, activity status, link/host connectivity

Technical details
Type	Console transmitter & receiver
Maximum transfer distance	3937" (100 m)
LED indicators	Activity, Link, Power
Housing material	Steel
Data transfer rate	480 Mbit/s
Product colour	Black
Cable types supported	Cat5e, Cat6, Cat7
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Plug and Play	Yes
Certification	CE, FCC, REACH
Compliance certificates	RoHS
Ports & interfaces
RJ-45 ports quantity	2
DC-in jack	Yes
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	4
Weight & dimensions
Width	2.99" (76 mm)
Depth	3.94" (100 mm)
Height	1.02" (26 mm)
Weight	6.77 oz (192 g)
Package width	7.68" (195 mm)
Package depth	9.65" (245 mm)
Package height	3.07" (78 mm)
Package weight	32.9 oz (932 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Colour
Product colour	Black

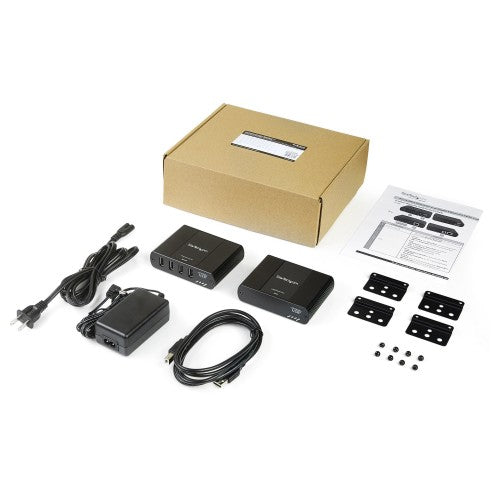

Packaging content
Quick start guide	Yes
Mounting kit	Yes
Cables included	AC, USB
AC adapter included	Yes
Power
Power consumption (typical)	24 W
Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	24 V
Output current	1 A
Power plug type	Type M
Logistics data
Master (outer) case width	16" (406 mm)
Master (outer) case length	22" (558 mm)
Master (outer) case height	10.6" (270 mm)
Products per master (outer) case	14 pc(s)
