USB Extender Kit | Locally or Remotely Powered| 2-Year Warranty

This USB 2.0 extender over ethernet lets you access and use your USB device up to 100 m (330 ft.) away over Cat5e, Cat6, or Cat7 cable. And, because it can be powered by either the local or the remote unit, you have more flexibility to place your USB device exactly where you need it. It’s the perfect USB extension solution for warehouses, factories, classrooms, boardrooms, homes, or offices.

Flexible power input options

Many USB-to-Ethernet extenders require that the remote unit has a power source connected for operation, which can make installation difficult. This versatile USB extender over Cat5e and Cat6 overcomes that restriction, letting you connect the power adapter to either the local (transmitter) unit or the remote (receiver) unit as needed.

When the power adapter is connected to the local unit, the USB over LAN extender delivers power over your Cat5e, Cat6, or Cat7 cable, eliminating the need for a power adapter in the remote location. Now you have the added convenience to install your USB device even in a remote location where a power outlet is unavailable, up to 100 m away.

Eliminates hassle and smashes distance limitations

This USB to Cat5e converter overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace. It’s perfect for connecting webcams, printers, flash drives, and virtually any USB peripheral.

Plus, with the included power adapter, you can connect USB devices such as external hard drives. For added installation convenience, the USB extender kit features built-in cable-tie slots for mounting to a pole.

Supports any operating system and older devices

The 100m USB extender is multi-platform compatible, so it supports a variety of operating systems such as Windows, Mac, Linux and Chrome OS. Setup is easy with no additional drivers or software required, and the universal USB extender is backward compatible with USB 1.1 and 1.0 peripherals.

The USB2001EXT2P is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- USB 2.0 EXTENDER: Extend a USB device up to 100m/330ft over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity.
- CONNECT REMOTE USB DEVICES: The USB extender let's you remotely access USB devices like printers, cameras, plotters, keyboard/mouse, laser cutters, displays, or CCTV systems from a convenient location
- INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection

Technical details
Type	Console transmitter & receiver
Maximum transfer distance	3937" (100 m)

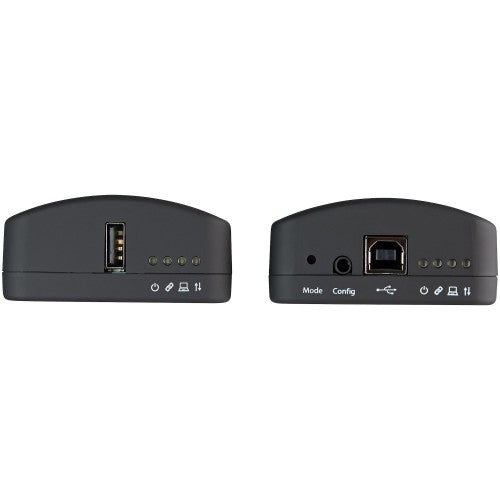

LED indicators	Activity, Link, Power
Housing material	Plastic
Data transfer rate	480 Mbit/s
Product colour	Black
Cable types supported	Cat5e, Cat6, Cat7
Certification	CE, FCC, REACH
Compliance certificates	RoHS
Ports & interfaces

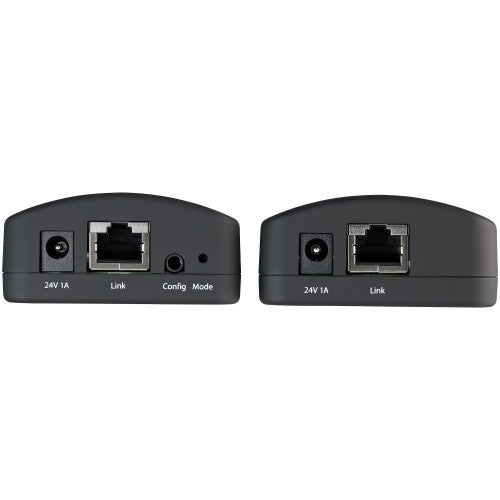

RJ-45 ports quantity	2
DC-in jack	Yes
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	1
Weight & dimensions
Width	2.56" (65 mm)
Depth	3.46" (88 mm)
Height	1.18" (30 mm)
Weight	6 oz (170 g)
Package width	7.64" (194 mm)
Package depth	9.65" (245 mm)
Package height	3.07" (78 mm)
Package weight	23.7 oz (671 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Colour
Product colour	Black

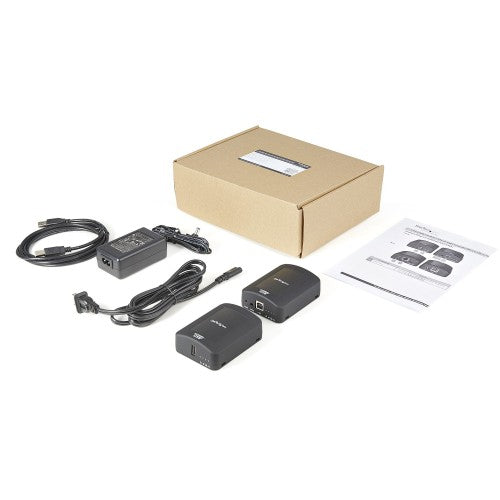

Packaging content
Mounting kit	Yes
Manual	Yes
Cables included	AC, USB
AC adapter included	Yes
Power
Power consumption (typical)	24 W
Input voltage	100 - 240 V
Input current	0.58 A
Output voltage	24 V
Output current	1 A
Power plug type	Type M
Logistics data
Master (outer) case width	16" (406 mm)
Master (outer) case length	22" (558 mm)
Master (outer) case height	10.6" (270 mm)
Products per master (outer) case	14 pc(s)
