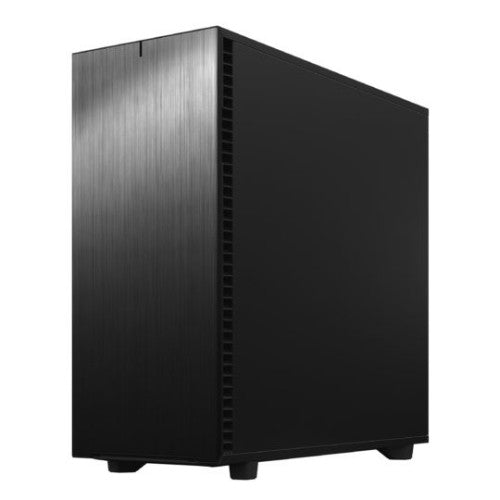

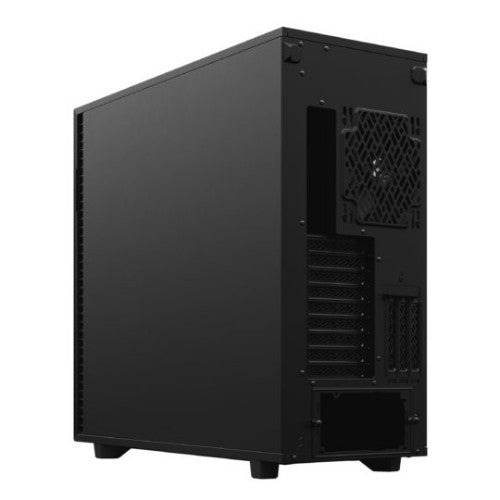

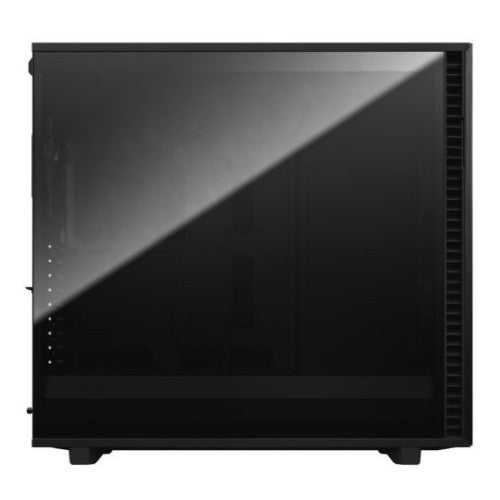

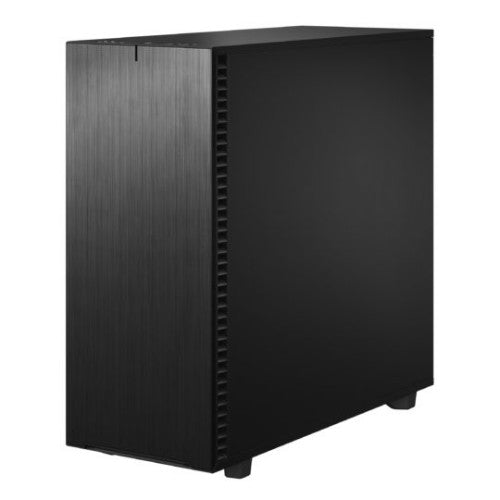

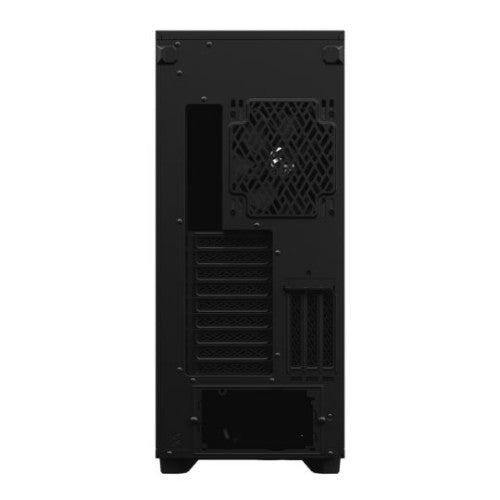

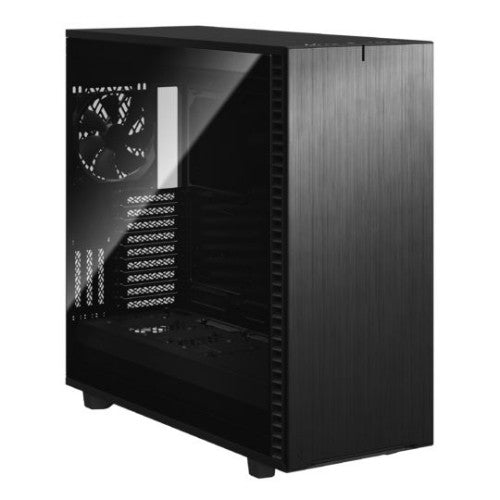

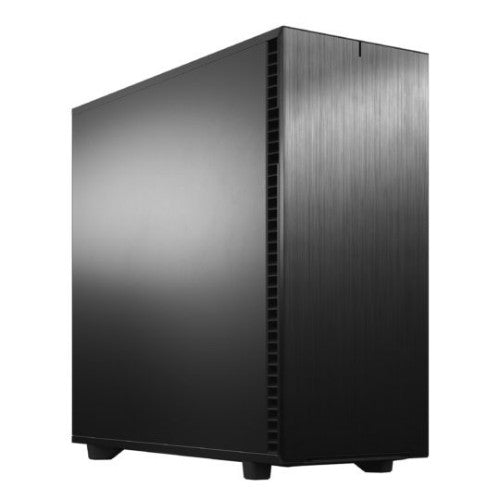

Fractal Design Define 7 XL Midi Tower Black
Part number
FD-C-DEF7X-01
355.49 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
18.84 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10GbpsSSI-EEB
Easily holds your SSI-EEB motherboardModuvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
Plenty of room for massive builds
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels.
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.
SSI-EEB
Easily holds your SSI-EEB motherboard.
Moduvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.
Versatile new Multibracket
The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.
Plenty of room for massive builds
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels.
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.
SSI-EEB
Easily holds your SSI-EEB motherboard.
Moduvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.
Versatile new Multibracket
The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.
| Design | |
|---|---|
| Volume | 77.6 L |
| Form factor | Midi Tower |
| Type | PC |
| Material | Steel |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 8 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Product colour | Black |
| Anti-dust filter | Yes |
| Number of 2.5" bays | 8 |
| Number of internal 3.5" bays | 8 |
| Side window | No |
| Illumination | No |
| Cable management | Yes |
| Number of expansion slots | 12 |
| Maximum CPU cooler height | 7.28" (18.5 cm) |
| Maximum graphics card length | 21.6" (54.9 cm) |
| Maximum PSU length | 9.84" (25 cm) |
| Ergonomics | |
| Cable management | Yes |
| Power supply | |
| Power supply included | No |
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Number of power supply units | 1 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator installed | No |
| Front radiator sizes supported | 420,480 mm |
| Rear radiator installed | Yes |
| Top radiator installed | No |
| Top radiator sizes supported | 420,480 mm |
| Rear radiator type | Single radiator |
| Rear radiator fan size installed | 120 |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 4 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Volume | 77.6 L |
| Width | 9.45" (240 mm) |
| Depth | 23.8" (604 mm) |
| Height | 22.3" (566 mm) |
| Weight | 36.6 lbs (16.6 kg) |
| Packaging data | |
| Package width | 14.1" (357 mm) |
| Package depth | 25.4" (646 mm) |
| Package height | 27.9" (708 mm) |
| Package weight | 41.4 lbs (18.8 kg) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Volume | 77.6 L |
| Harmonized System (HS) code | 84733080 |
