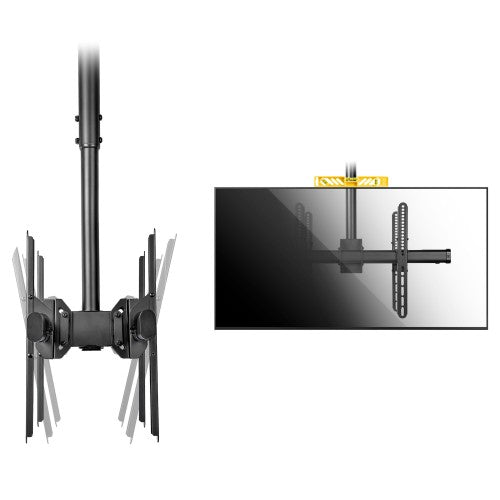

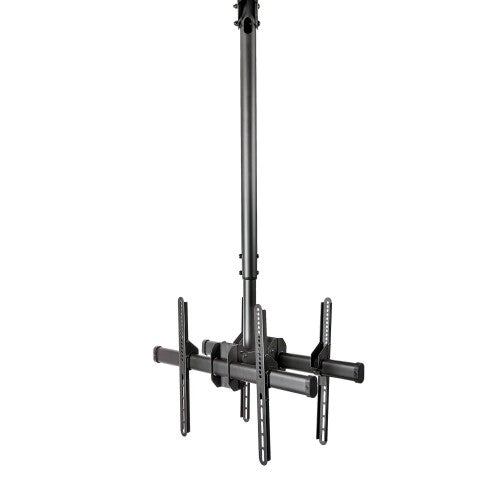

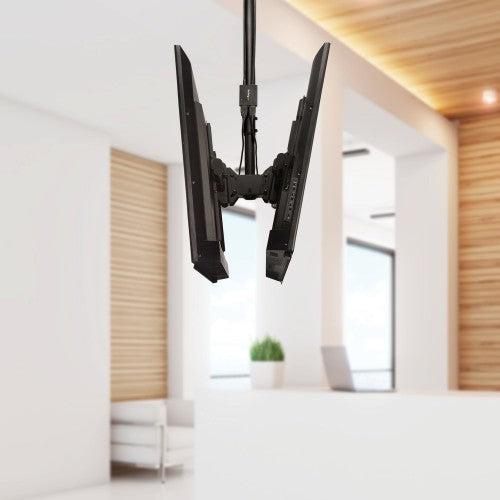

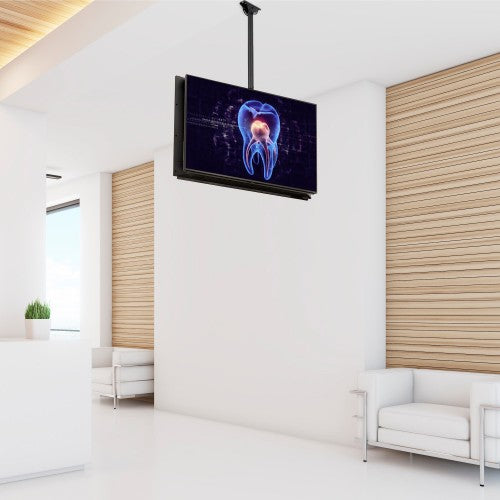

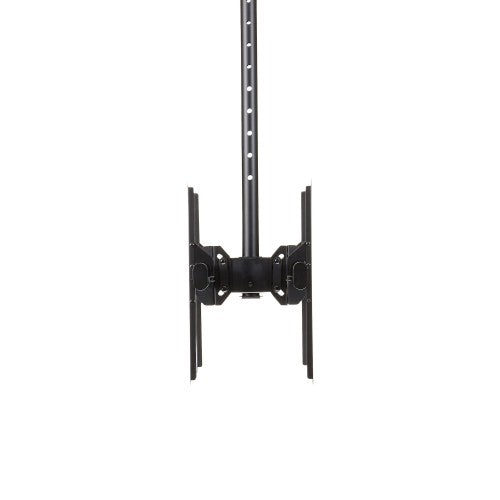

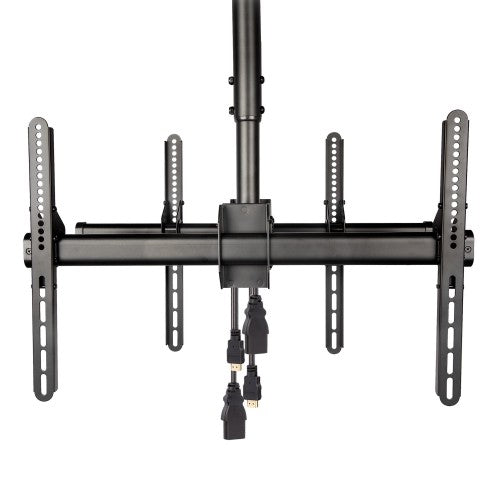

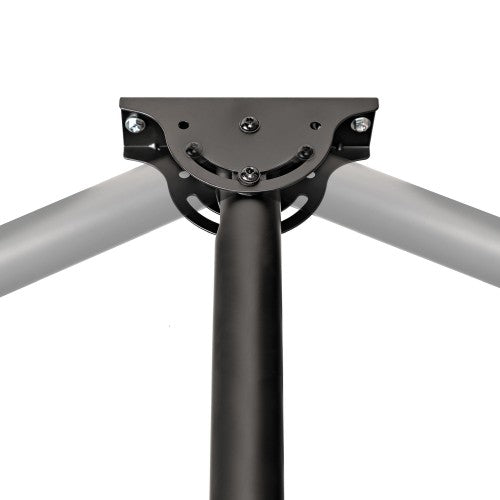

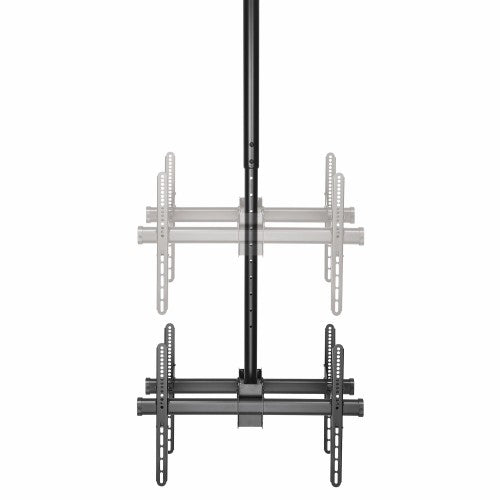

StarTech.com FPCEILBTB signage display mount 75" Black
371.56 CAD
Skip to product information
Out of stock
StarTech.com FPCEILBTB signage display mount 75" Black
Part number
FPCEILBTB
371.56 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
10.8 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- RUG-AAN-RUG DUAL 75" TV PLAFONDBEUGEL: Stevige VESA-scherm plafondbeugel ondersteunt displays, inclusief gebogen tv's tot 75" (50kg per scherm). In hoogte verstelbare arm (1m tot 1,5m vanaf het plafond)
- GROOT BEWEGINGSBEREIK: Dankzij de plafond-TV-beugel kunnen beide schermen 360° rond de telescopische arm worden gedraaid. Individueel +/-3° draaien en +5/-20° Kantelen. De schermpositie kan worden vastgezet met het meegeleverd gereedschap.
- VEERZIJDIGE INSTALLATIES: Dankzij de verstelbare plafondbeugel voor meerdere schermen kan de arm +/-60 graden worden versteld en vastgezet voor schuine/hellende plafonds, zodat de schermen waterpas staan
- COMPATIBILITEIT: Universele ophangbeugel is geschikt voor TV's van LG, Samsung, Sony en Sharp (inclusief schroeven/onderlegringen) en VESA-patronen 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- ESTHETISH ONTWERP: De robuuste dual plafond TV beugel biedt een ophangsysteem voor eenvoudige installatie van twee brede schermen en geïntegreerd kabelbeheer. Ideaal voor digital signage toepassingen.
StarTech.com FPCEILBTB. Maximum weight capacity: 198.4 lbs (90 kg), Minimum screen size: 32", Maximum screen size: 75", Minimum VESA mount: 7.87 x 7.87" (200 x 200 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Height adjustment range: 41.7 - 61.4" (1060 - 1560 mm), Tilt angle range: -20 - 5°. Product color: Black
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 99.2 lbs (45 kg) |
| Minimum screen size | 32" |
| Maximum screen size | 75" |
| Mounting type | Ceiling |
| Maximum weight capacity | 198.4 lbs (90 kg) |
| Number of displays supported | 2 |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Minimum VESA mount | 7.87 x 7.87" (200 x 200 mm) |
| Maximum VESA mount | 23.6 x 15.7" (600 x 400 mm) |
| Ergonomics | |
| Adjustable | Yes |
| Height adjustment | Yes |
| Height adjustment range | 41.7 - 61.4" (1060 - 1560 mm) |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -20 - 5° |
| Angle of rotation | 360° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 6.5" (165 mm) |
| Depth | 26.8" (680 mm) |
| Height | 32.9" (835 mm) |
| Weight | 21.6 lbs (9.8 kg) |
| Depth (max) | 26.8" (68 cm) |
| Package width | 12.2" (310 mm) |
| Package depth | 36.8" (935 mm) |
| Package height | 5.71" (145 mm) |
| Package weight | 23.8 lbs (10.8 kg) |
| Packaging data | |
| Package width | 12.2" (310 mm) |
| Package depth | 36.8" (935 mm) |
| Package height | 5.71" (145 mm) |
| Package weight | 23.8 lbs (10.8 kg) |
| Packaging content | |
| Wrench included | Yes |
| Washers included | Yes |
| Spacer included | Yes |
| Screws included | Yes |
| Nuts included | Yes |
| Number of washers included | 12 |
| Number of spacers included | 32 |
| Number of screws | 46 |
| Number of nuts | 2 |
| Manual | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 13.4" (340 mm) |
| Master (outer) case length | 38" (965 mm) |
| Master (outer) case height | 12.2" (310 mm) |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
