HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.

Resolutions up to 1080p, with Audio

With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control Through a Free App

The kit includes an easy-to-use online app to manage your IP video distribution.

The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.

Download the StarTech.com Video Control software to manage your IP video distribution.

NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.

Hassle-Free Installations

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e, Cat6
Audio output channels	7.1 channels
Rack mounting	Yes
Daisy chain	Yes
Maximum refresh rate	60 Hz
Maximum transfer distance	3937" (100 m)
Supported video modes	720p, 1080p
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
LED indicators	Link, Network, Power, Status
Product colour	Black
Rubber feet	Yes

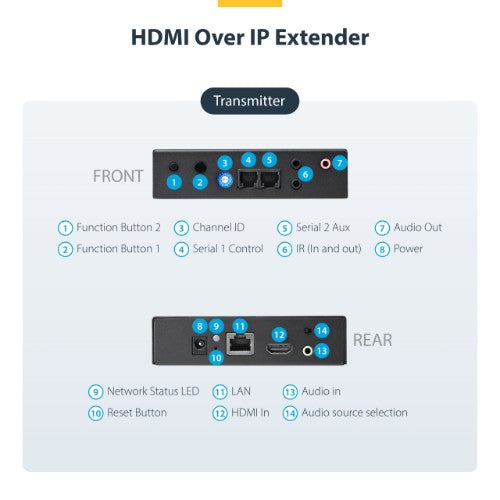

Ports & interfaces
3.5 mm (1/8-inch) out	Yes
3.5 mm (1/8-inch) in	Yes
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
RJ-11 ports quantity	4
Audio output	2 x 3.5 mm
Audio input	2 x 3.5 mm
Power
Input current	0.6 A
Output current	1.5 A
Power plug type	Type M
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
External power adapter	Yes
Operating voltage	12 V
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	2.65 lbs (1.2 kg)
Width	4.65" (118 mm)
Height	1.22" (31 mm)
Depth	5.16" (131 mm)
Packaging data
Package width	9.25" (235 mm)
Package weight	5.07 lbs (2.3 kg)
Package height	2.95" (75 mm)
Package depth	14.4" (365 mm)

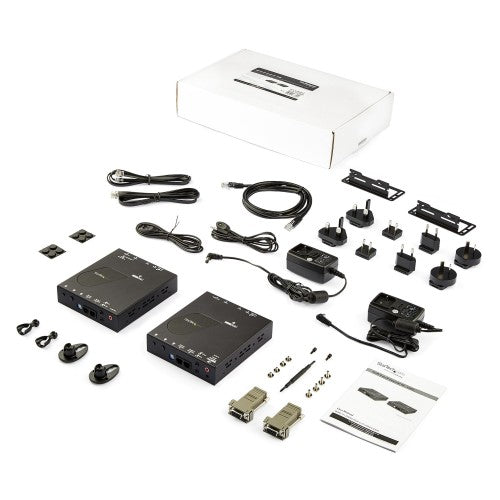

Packaging content
IR receiver included	Yes
IR blaster included	Yes
Mounting kit	Yes
Manual	Yes
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK, US
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	15.2" (385 mm)
Master (outer) case length	15.4" (390 mm)
Master (outer) case height	10.6" (270 mm)
Products per master (outer) case	6 pc(s)
