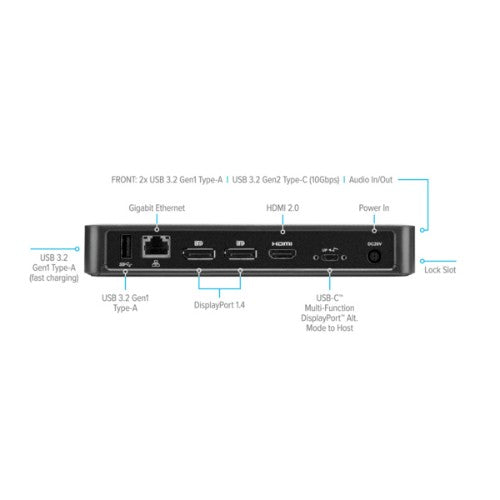

Create a more powerful, productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals. Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port, you’re able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports. Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings. Supports Two DisplayPort™ and One HDMI Monitor Access the latest display technology with two DisplayPort™ and HDMI ports that creates a rich, high-definition viewing experience. The USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode – and even 1920x1080 p60 with three monitors. Enhanced Power Delivery The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5, 9, 12, 15, and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC, MacBook, Chromebook, and even popular Android phones. Onboard USB 3.0 for Advanced Peripherals and Charging Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards, external drives, and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet, or other devices powered up and ready to go.

Ports & interfaces
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Number of displays supported	3
Maximum digital resolution	3840 x 2160 pixels
Charging function	Yes

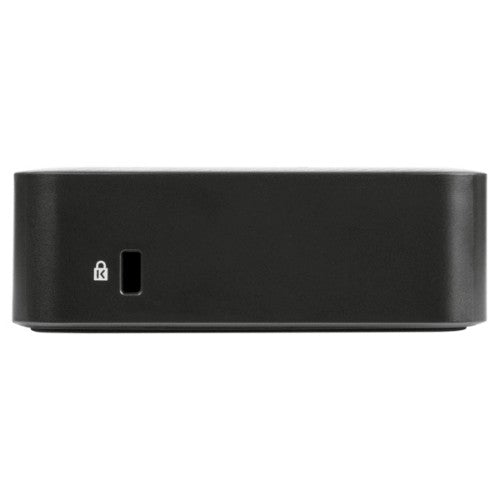

Cable lock slot type	Kensington
Cooling
Built-in fan	No
Storage
Card reader integrated	No
Power
Power source type	AC, DC
Power consumption (max)	135 W
Output voltage	20 V
Output current	6.75 A
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android
Weight & dimensions
Width	7.09" (180 mm)
Depth	1.06" (27 mm)
Height	3.23" (82 mm)
Weight	10.1 oz (285 g)
Design
Product colour	Black
Cable lock slot	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Packaging content
User guide	Yes
AC adapter included	Yes
Mounting brackets included	No
Quantity per pack	1 pc(s)
Technical details
User guide	Yes
