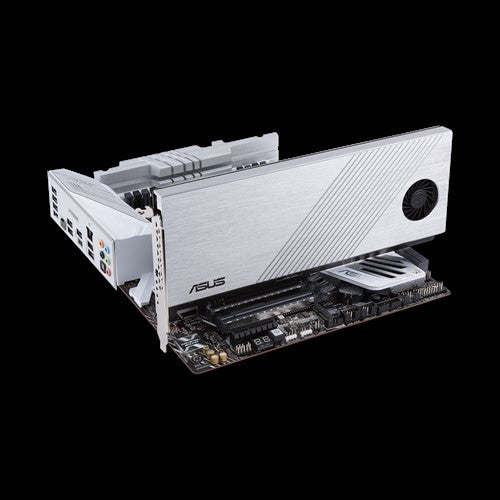

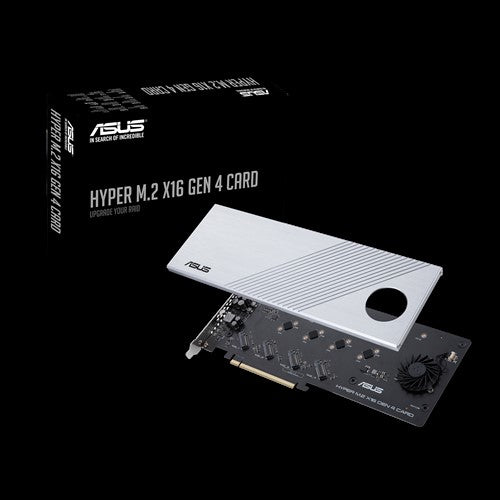

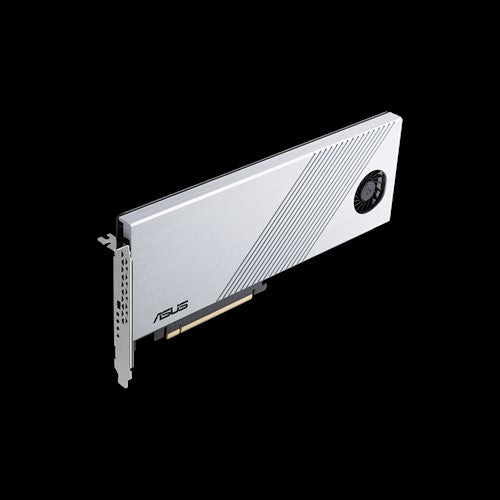

ASUS Hyper M.2 x16 Gen 4 Card interface cards/adapter Internal
108.13 CAD
Skip to product information
Out of stock
ASUS Hyper M.2 x16 Gen 4 Card interface cards/adapter Internal
Part number
HYPER M.2 X16 GEN 4 CARD
108.13 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.009 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Two-phase power solution with up to 14-watt output supports the latest NVMe drives
- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
- Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
- Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
- Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting
RAID on CPU
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
Design for unthrottled transfer speed

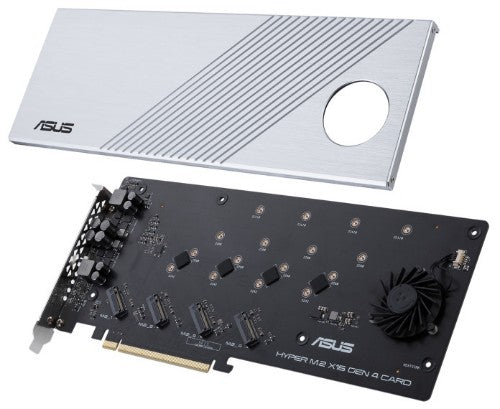

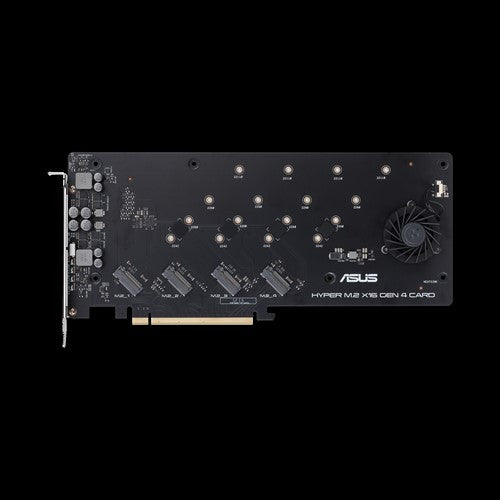

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel® X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
Design for unthrottled transfer speed
The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | M.2 |
| Number of M.2 (M) slots | 4 |
| Expansion card standard | PCIe 4.0 |
| Performance | |
| Plug and Play | Yes |
| Purpose | PC |
| Data transfer rate (max) | 256 Gbit/s |
| Product colour | Black,Silver |
| Design | |
| Internal | Yes |
| Easy to install | Yes |
| Purpose | PC |
| Product colour | Black,Silver |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Number of expansion slots | 4 |
| Features | |
| Plug and Play | Yes |
| Data transfer rate (max) | 256 Gbit/s |
| Weight & dimensions | |
| Width | 4.8" (122 mm) |
| Depth | 10.6" (270 mm) |
| Height | 0.591" (15 mm) |
| Packaging data | |
| Package type | Box |
| Quantity | 1 |
| Packaging content | |
| Package type | Box |
| Quantity | 1 |
