Tripp Lite SRWO8U22DP rack cabinet 22U Wall mounted rack Black
258.27 CAD
Skip to product information
Out of stock
Tripp Lite SRWO8U22DP rack cabinet 22U Wall mounted rack Black
Part number
SRWO8U22DP
258.27 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
9.07 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 150 lbs (68 kgs)
- Secures 19 in. rack equipment up to 23.5 in. deep

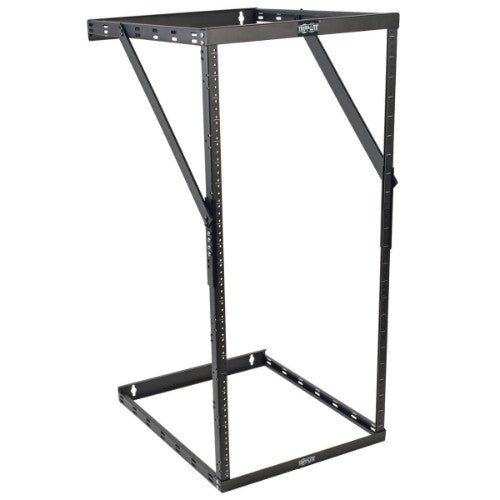

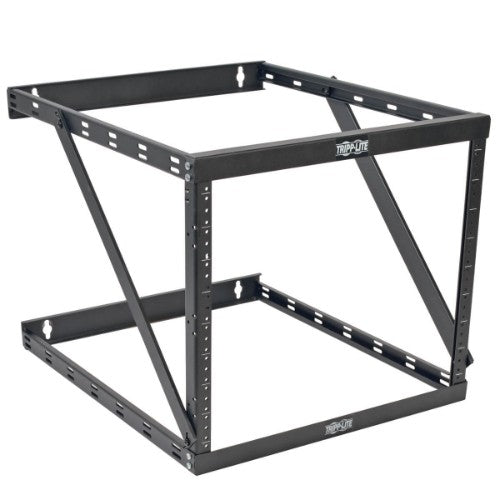

- Configures to 8U, 12U or 22U of rack space
- Heavy-duty steel construction designed to last
- Easy to assemble with included hardware

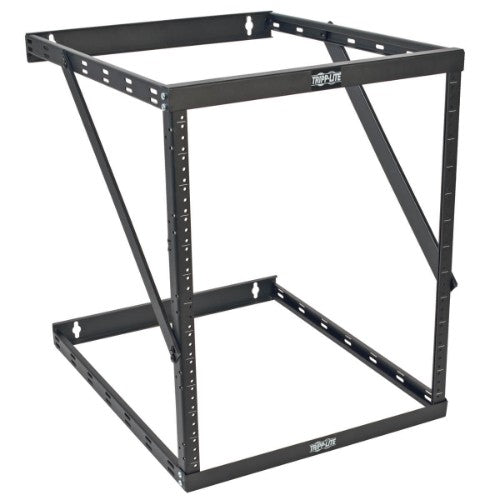

The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
| Features | |
|---|---|
| Size (imperial) | 19" |
| Type | Wall mounted rack |
| Rack capacity | 22U |
| Maximum weight capacity | 148.8 lbs (67.5 kg) |
| Frame type | Open |
| Product design | 2-post |
| Product colour | Black |
| Material | Steel |
| Weight & dimensions | |
| Package width | 3.8" (96.5 mm) |
| Package depth | 21.7" (551.2 mm) |
| Package height | 21.7" (551.2 mm) |
| Package weight | 20 lbs (9.07 kg) |
| Width | 20.4" (518.7 mm) |
| Depth | 24" (609.6 mm) |
| Height | 42.3" (1074.7 mm) |
| Weight | 17.2 lbs (7.8 kg) |
| Size (imperial) | 19" |
| Packaging content | |
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Manual | Yes |
| Packaging data | |
| Mounting kit | Yes |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 3.8" (96.5 mm) |
| Package depth | 21.7" (551.2 mm) |
| Package height | 21.7" (551.2 mm) |
| Package weight | 20 lbs (9.07 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332187427 |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 22U |
| Logistics data | |
| Master (outer) case width | 28.7" (730 mm) |
| Master (outer) case length | 36" (914.9 mm) |
| Master (outer) case height | 22.1" (560.1 mm) |
| Master (outer) case gross weight | 196 lbs (88.9 kg) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
