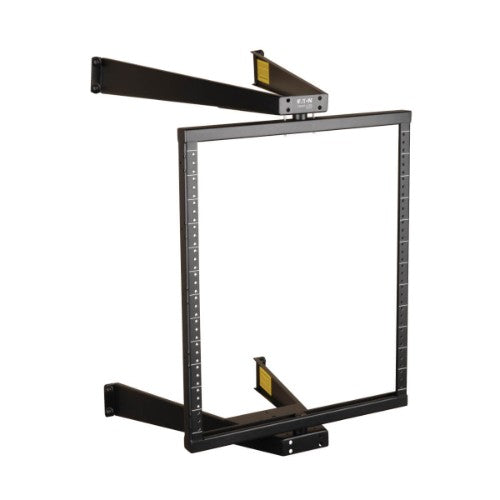

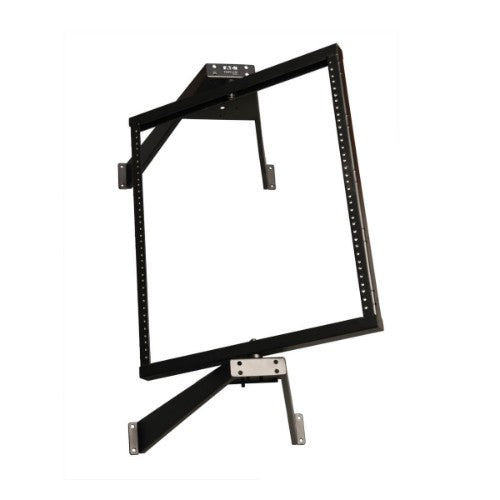

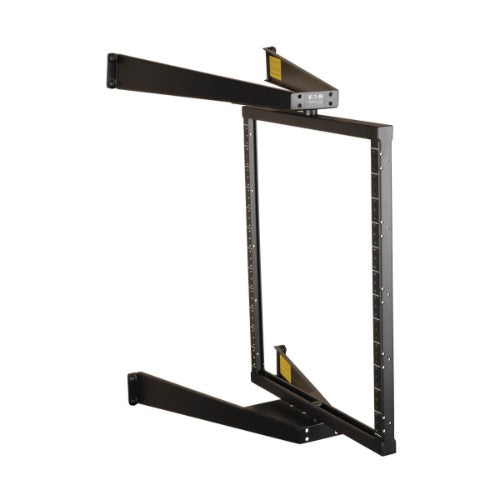

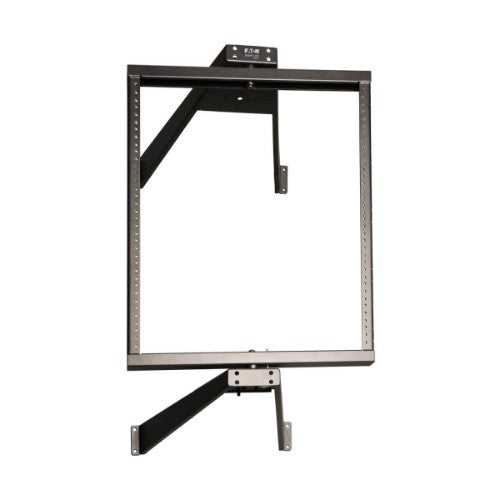

Tripp Lite SRWO12US rack cabinet 12U Wall mounted rack Black
310.19 CAD
Skip to product information
Out of stock
Tripp Lite SRWO12US rack cabinet 12U Wall mounted rack Black
Part number
SRWO12US
310.19 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
7.26 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 150 lbs (68 kgs)
- Pivots to allow easy rear access to equipment and cabling
- Stores 12U of 19 in. rack equipment up to 18 in. deep
- Simple to assemble and mount
- Assembly and equipment-mounting hardware included
The SRWO12US SmartRack 12U Flat-Pack Low-Profile Switch-Depth Wall-Mount Pivoting 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 150 lbs (68 kgs).

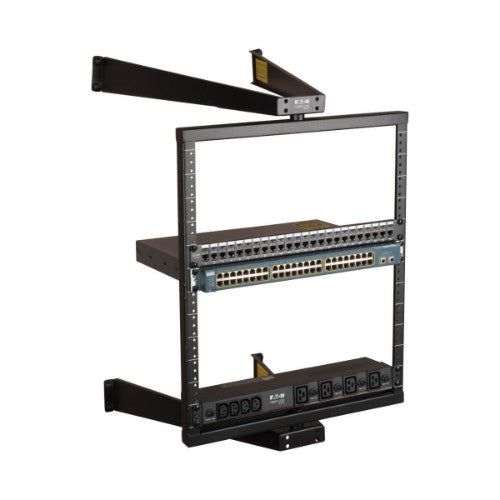

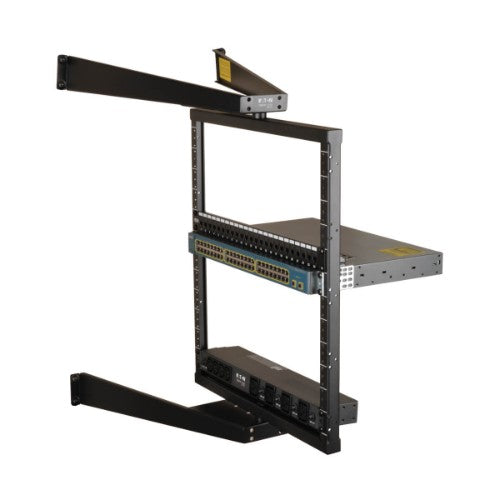

The open frame design pivots to allow unrestricted access for installing, configuring and servicing equipment and cabling from any direction. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. Included locking pins secure the frame in position while pivoted for mounting equipment. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.
The open frame design pivots to allow unrestricted access for installing, configuring and servicing equipment and cabling from any direction. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. Included locking pins secure the frame in position while pivoted for mounting equipment. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.
| Weight & dimensions | |
|---|---|
| Package width | 24.4" (619.8 mm) |
| Package depth | 20.1" (510.5 mm) |
| Package height | 4.1" (104.1 mm) |
| Package weight | 16 lbs (7.26 kg) |
| Width | 19.8" (501.9 mm) |
| Depth | 20.4" (516.9 mm) |
| Height | 31" (788.4 mm) |
| Weight | 15 lbs (6.8 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Type | Wall mounted rack |
| Rack capacity | 12U |
| Maximum weight capacity | 150.1 lbs (68.1 kg) |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS, UL 60950 |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 24.4" (619.8 mm) |
| Package depth | 20.1" (510.5 mm) |
| Package height | 4.1" (104.1 mm) |
| Package weight | 16 lbs (7.26 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332156768 |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Logistics data | |
| Master (outer) case width | 46.1" (1169.9 mm) |
| Master (outer) case length | 21.6" (549.9 mm) |
| Master (outer) case height | 25.6" (650.2 mm) |
| Master (outer) case gross weight | 177.9 lbs (80.7 kg) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
