Tripp Lite SRW18US rack cabinet 18U Wall mounted rack Black
1,043.76 CAD
Skip to product information
1 left
Tripp Lite SRW18US rack cabinet 18U Wall mounted rack Black
Part number
SRW18US
Sale price
1,043.76 CAD
Regular price
1,393.99 CAD
Taxes and shipping calculated at checkout.
Save
350.23 CAD
Off
25%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
50.8 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 250 lbs (113.4 kgs)

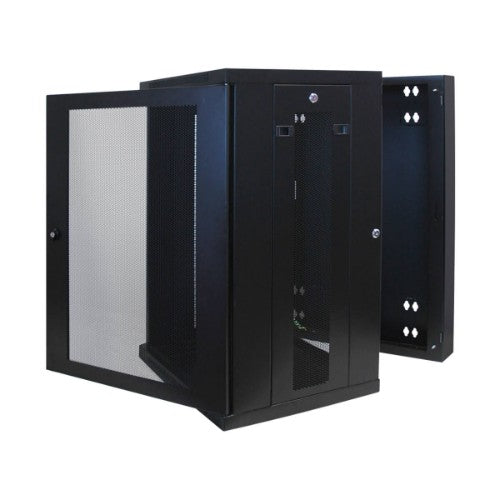

- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 18U of 19 in. rack equipment up to 20.5 in. deep
The SRW18US SmartRack® 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
| Weight & dimensions | |
|---|---|
| Package width | 26.1" (662.9 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 40.7" (1034 mm) |
| Package weight | 112 lbs (50.8 kg) |
| Width | 23.6" (599.4 mm) |
| Depth | 21.6" (548.6 mm) |
| Height | 35.6" (904.2 mm) |
| Weight | 95.9 lbs (43.5 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Type | Wall mounted rack |
| Rack capacity | 18U |
| Maximum weight capacity | 250 lbs (113.4 kg) |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950 |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 26.1" (662.9 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 40.7" (1034 mm) |
| Package weight | 112 lbs (50.8 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 18U |
| Logistics data | |
| Master (outer) case width | 26.1" (662.9 mm) |
| Master (outer) case length | 24.1" (612.9 mm) |
| Master (outer) case height | 40.7" (1034 mm) |
| Master (outer) case gross weight | 112 lbs (50.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
