Tripp Lite SRW10USG rack cabinet 10U Wall mounted rack Black
676.87 CAD
Skip to product information
Out of stock
Tripp Lite SRW10USG rack cabinet 10U Wall mounted rack Black
Part number
SRW10USG
Sale price
676.87 CAD
Regular price
927.68 CAD
Taxes and shipping calculated at checkout.
Save
250.81 CAD
Off
27%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
26.76 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 200 lbs (90.7 kgs)

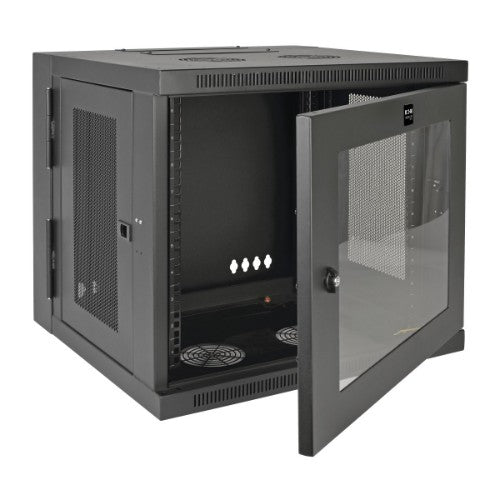

- Swings away from wall on hinge for easy back-door access

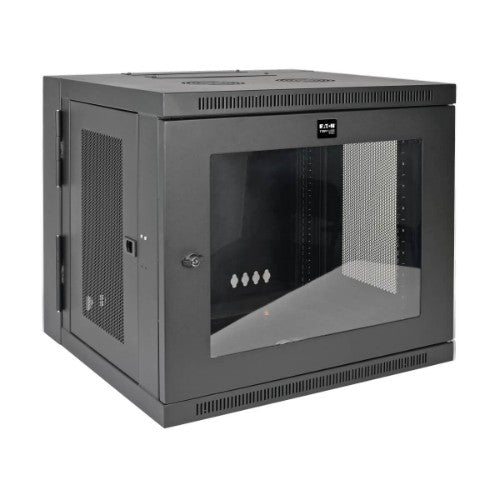

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep
Saves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 10U of space
Maximum load capacity of 200 lb.
Hinged Cabinet for Convenient Access
Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180° before mounting to open reversible doors left or right
Shatter-Resistant Clear Acrylic Front Window
Lets you monitor equipment without unlocking the enclosure
Prevents equipment tampering
Reduces acoustic noise
Provides extra visual flair
Keeps Important Equipment Secure
Side panels and doors lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
Ships fully assembled for quick installation
Mounts to wall or rolls on floor with optional SRCASTER caster kit

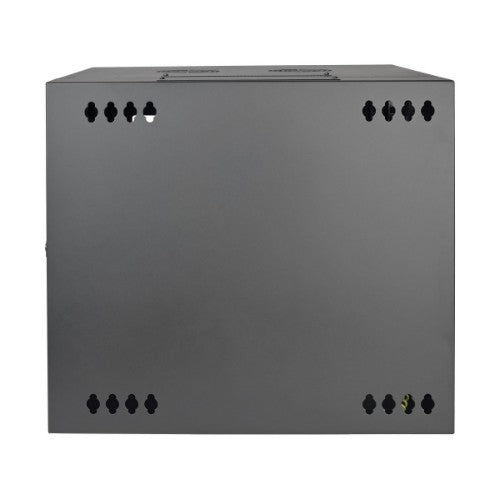

Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

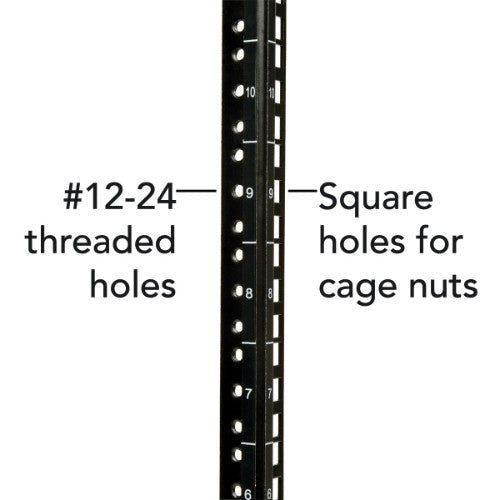

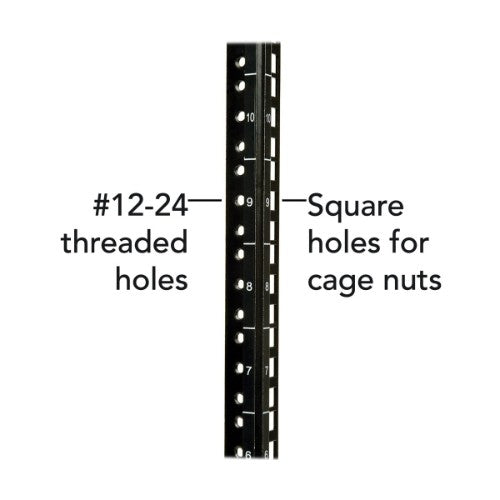

Rails support square-hole or 12-24 threaded-hole mounting
Rack spaces numbered for easy reference
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 10U of space
Maximum load capacity of 200 lb.
Hinged Cabinet for Convenient Access
Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180° before mounting to open reversible doors left or right
Shatter-Resistant Clear Acrylic Front Window
Lets you monitor equipment without unlocking the enclosure
Prevents equipment tampering
Reduces acoustic noise
Provides extra visual flair
Keeps Important Equipment Secure
Side panels and doors lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
Ships fully assembled for quick installation
Mounts to wall or rolls on floor with optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels
Rails support square-hole or 12-24 threaded-hole mounting
Rack spaces numbered for easy reference
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
| Weight & dimensions | |
|---|---|
| Package width | 26.4" (670.1 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 24.3" (616 mm) |
| Package weight | 59.1 lbs (26.8 kg) |
| Width | 23.6" (600 mm) |
| Depth | 21.6" (548 mm) |
| Height | 21.5" (546 mm) |
| Weight | 52.9 lbs (24 kg) |
| Mounting depth (max) | 21.6" (54.8 cm) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Removable front door | Yes |
| Removable side panels | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Rack capacity | 10U |
| Number of fans | 4 fan(s) |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Key lock | Yes |
| Frame type | Closed |
| Product colour | Black |
| Certification | UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 26.4" (670.1 mm) |
| Package depth | 24.1" (612.9 mm) |
| Package height | 24.3" (616 mm) |
| Package weight | 59.1 lbs (26.8 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 10U |
| Logistics data | |
| Master (outer) case width | 26.4" (670.1 mm) |
| Master (outer) case length | 24.1" (612.9 mm) |
| Master (outer) case height | 24.3" (616 mm) |
| Master (outer) case gross weight | 59.1 lbs (26.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
