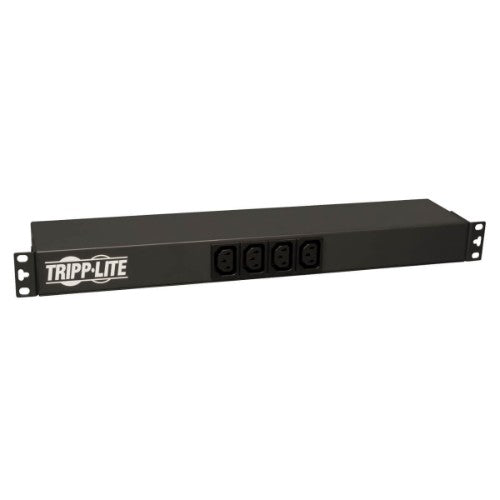

Tripp Lite PDUH20HVL6 power distribution unit (PDU) 14 AC outlet(s) 1U Black
245.81 CAD
Skip to product information
Out of stock
Tripp Lite PDUH20HVL6 power distribution unit (PDU) 14 AC outlet(s) 1U Black
Part number
PDUH20HVL6
245.81 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.68 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)

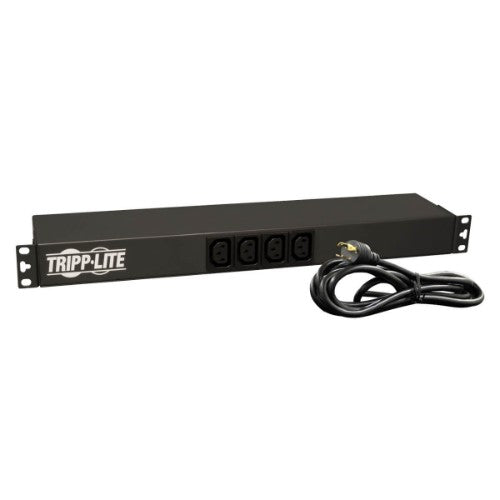

- Attached NEMA L6-20P input with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

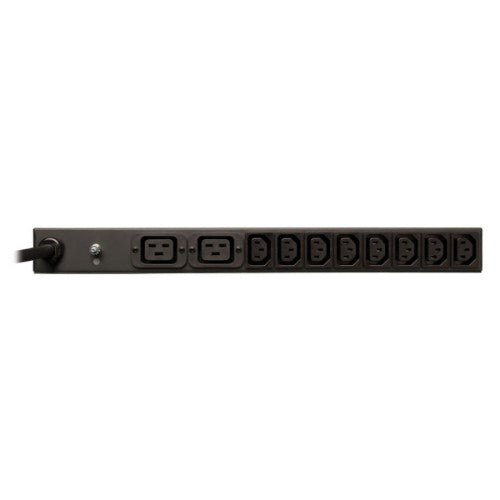

- 14 outlets (2 C19, 12 C13)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- 20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Attached NEMA L6-20P input with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 14 outlets (2 C19, 12 C13)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL 60950 (USA), CSA (Canada) |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA L6-20P |
| AC outlets quantity | 14 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Yes |
| Cable length | 177.2" (4.5 m) |
| Certification | UL 60950 (USA), CSA (Canada) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 177.2" (4.5 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 20 A |
| Nominal output voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL 60950 (USA), CSA (Canada) |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 5.27 lbs (2.39 kg) |
| Width | 17.2" (438 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 2.25" (57.2 mm) |
| Package depth | 20.3" (514.4 mm) |
| Package height | 11" (279.4 mm) |
| Package weight | 5.91 lbs (2.68 kg) |
| Packaging data | |
| Package width | 2.25" (57.2 mm) |
| Package depth | 20.3" (514.4 mm) |
| Package height | 11" (279.4 mm) |
| Package weight | 5.91 lbs (2.68 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332158977 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 20.7" (525.8 mm) |
| Master (outer) case length | 14.1" (358.1 mm) |
| Master (outer) case height | 11.9" (302.3 mm) |
| Master (outer) case gross weight | 37.5 lbs (17 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332158977 |
