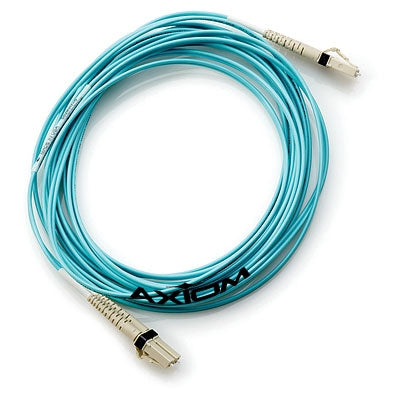

Axiom LCLC10GA-2M-AX InfiniBand/fibre optic cable 78.7" (2 m) LC OFNR Aqua color
24.44 CAD
Skip to product information
Out of stock
Axiom LCLC10GA-2M-AX InfiniBand/fibre optic cable 78.7" (2 m) LC OFNR Aqua color
Part number
LCLC10GA-2M-AX
24.44 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.025 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Multimode Duplex Fiber Optic Cable 50/125, OM3, Aqua
- 10 Gigabit Transfers Up To 300 Meters Using 850nm VCSEL Source

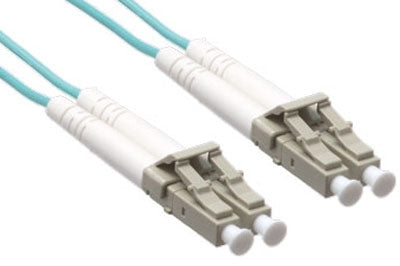

- (2) LC Connectors Each Side
- All Connectors Have Ceramic Ferrules
- Duplex Clips Both Sides
- PVC (OFNR) Rated Aqua Jacket With Corning Glass
- Jacket OD: 1.8mm
- Typical Return Loss: -25
- Maximum Connector Loss: 0.50 dB
- Typical Connector Loss: 0.30 dB
- Long Term Tensile Strength: 150n
- Long Term Crush Resistance: 200n/100mm
- Operating Temperature: -40° C To +70° C
- Color: Aqua
Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber, infinband, antenna & stacking cables. Whether you’re updrading components or installing a brand new network, you’ll receive the highest quality connectivity products, a Lifetime Warranty and free technical support.
| Features | |
|---|---|
| Cable length | 78.7" (2 m) |
| Connector material | Ceramic |
| Fibre optic type | OM3 |
| Return loss | 0.3 dB |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | OFNR |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Polyvinyl chloride (PVC) |
| Insertion loss | 0.5 dB |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 10 Gbit/s |
| Operating temperature (T-T) | -40 - 70 °C |
| Certification | CE, RoHS |
| Wavelengths supported | 850 nm |
| Product colour | Aqua color |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Cable length | 78.7" (2 m) |
| Cable diameter | 0.0709" (1.8 mm) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
