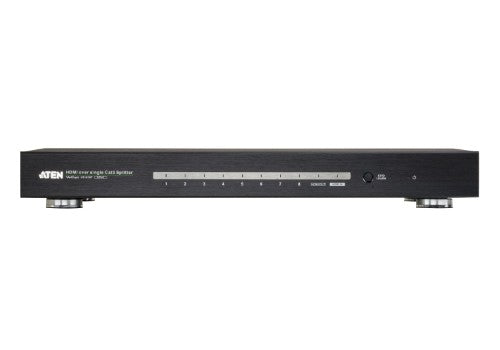

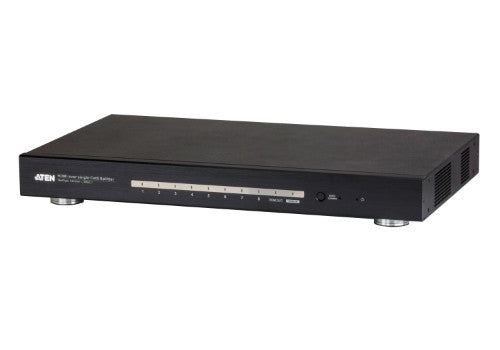

ATEN VS1818T video splitter HDMI
2,463.02 CAD
Skip to product information
Out of stock
ATEN VS1818T video splitter HDMI
Part number
VS1818T
2,463.02 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.58 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One HDMI input to 8 HDMI outputs via a Cat 5e cable
- Offers local HDMI output
- Extends displays up to 100 m
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
- HDMI (3D, Deep color, 4kx2k); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- EDID mode selection
- Rack-mountable
- * Note: The VS1818T is compatible with the VE812R HDMI over Single Cat 5 Receiver.
The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | HDMI |
| Video in | HDMI |
| Ethernet LAN (RJ-45) ports | 8 |
| Connector(s) | RS-232 |
| Cable types supported | Cat5 |
| Ethernet LAN | Yes |
| Features | |
| Supported graphics resolutions | 4096 x 2160, 1920 x 1080 (HD 1080) |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| Supported video modes | 1080p |
| Power LED | Yes |
| Housing material | Metal |
| Product colour | Black |
| Network | |
| Cable types supported | Cat5 |
| Ethernet LAN | Yes |
| Weight & dimensions | |
| Weight | 7.89 lbs (3.58 kg) |
| Dimensions (WxDxH) | 10.3 x 17 x 1.73" (261.1 x 432.4 x 44 mm) |
| Packaging content | |
| User guide | Yes |
| Packaging content | Mounting Kit |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Video | |
| Supported graphics resolutions | 4096 x 2160, 1920 x 1080 (HD 1080) |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| Supported video modes | 1080p |
| Colour | |
| Product colour | Black |
| Indication | |
| Power LED | Yes |
| Technical details | |
| Video out | HDMI |
| Video in | HDMI |
| Housing material | Metal |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
