ATEN VE802R AV extender AV receiver Black
211.37 CAD
Skip to product information
Out of stock
ATEN VE802R AV extender AV receiver Black
Part number
VE802R
211.37 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.773 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable

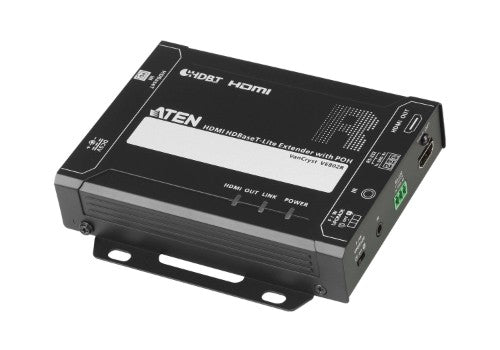

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.
* Compatible HDBaseT Transmitter Units: VE802T
* Compatible HDBaseT Transmitter Units: VE802T
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| Maximum transfer distance | 2755.9" (70 m) |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Material | Metal |
| HDCP | Yes |
| Bandwidth | 340 MHz |
| Product colour | Black |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Audio output | 1 |
| Audio input | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (receiver) (max) | 4 W |
| AC input frequency | 60 Hz |
| Operating voltage | 5 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 4.84 x 5.7 x 1.18" (123 x 144.8 x 30 mm) |
| Receiver weight | 16.2 oz (460 g) |
| Packaging content | |
| IR receiver included | Yes |
| Manual | Yes |
