ATEN VE801R AV extender AV receiver Black
155.20 CAD
Skip to product information
Out of stock
ATEN VE801R AV extender AV receiver Black
Part number
VE801R
155.20 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.25 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable

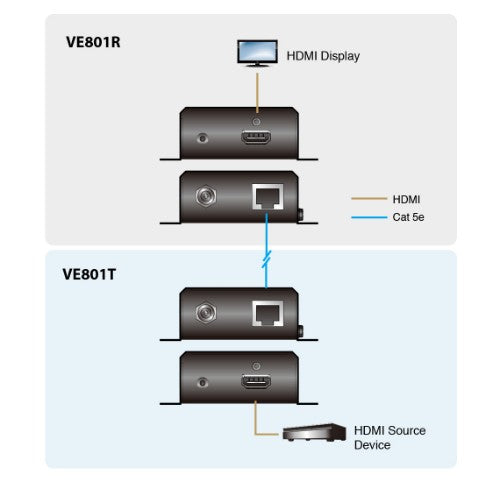

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
* Compatible HDBaseT Transmitter Units: VE801T
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 2755.9" (70 m) |
| Supported video modes | 1080p |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 340 MHz |
| Product colour | Black |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Ethernet LAN | Yes |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 4.23 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) | 3.43 x 4.06 x 1.18" (87 x 103 x 30 mm) |
| Weight | 8.82 oz (250 g) |
| Packaging content | |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
