ATEN CS1308 KVM switch Rack mounting Black
303.29 CAD
Skip to product information
Out of stock
ATEN CS1308 KVM switch Rack mounting Black
Part number
CS1308
303.29 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.89 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

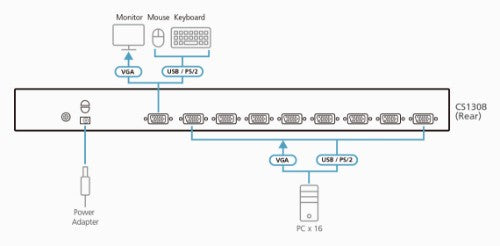

- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
ATEN CS1308. Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 255 s. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 5 W. Compliance certificates: RoHS
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 255 s |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Power |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power consumption (typical) | 5 W |
| Video | |
| Maximum resolution | 2048 x 1536 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 17" (433 mm) |
| Depth | 6.3" (160 mm) |
| Height | 1.73" (44 mm) |
| Weight | 4.17 lbs (1.89 kg) |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Connectivity technology | Wired |
| Power requirements | DC 5.3 V |
| Compatible operating systems | Windows 2000/XP/Vista, Linux, Mac, Sun |
| I/O ports | 1 x RJ11 |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
