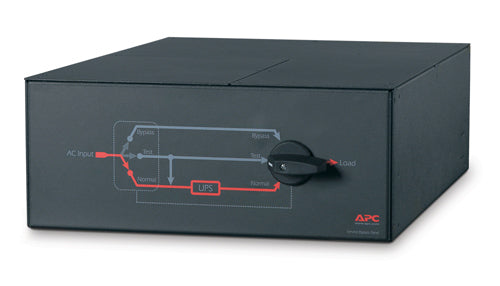

APC Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black
2,111.91 CAD
Skip to product information
Out of stock
APC Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black
Part number
SBP16KRMP4U
2,111.91 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
34.573 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
| Design | |
|---|---|
| Product colour | Black |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ports & interfaces | |
| Input connection type | Hard Wire 3-wire (2PH + G), Hard Wire 4-wire (2PH+N+G) |

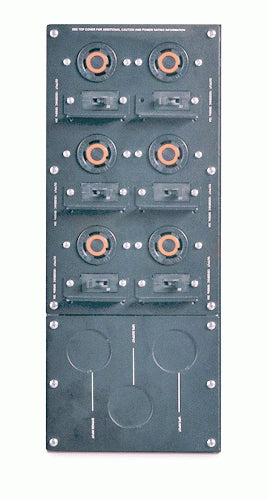

| Output connections | 6x NEMA L14-30R |
| Features | |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Power | |
| Nominal input voltage | 208 V |
| Load capacity | 20000 VA |
| Maximum input current per phase | 100 A |
| Maximum total current draw per phase | 100 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17 x 26.5 x 7.01" (432 x 673 x 178 mm) |
| Weight | 51.1 lbs (23.2 kg) |
| Width | 17" (432 mm) |
| Depth | 26.5" (673 mm) |
| Height | 7.01" (178 mm) |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 12" (305 mm) |
| Package weight | 74.1 lbs (33.6 kg) |
| Package dimensions (WxDxH) | 24 x 39 x 12" (610 x 991 x 305 mm) |
| Packaging data | |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 12" (305 mm) |
| Package weight | 74.1 lbs (33.6 kg) |
| Package dimensions (WxDxH) | 24 x 39 x 12" (610 x 991 x 305 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
