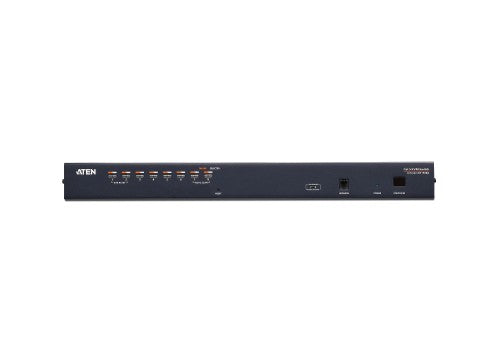

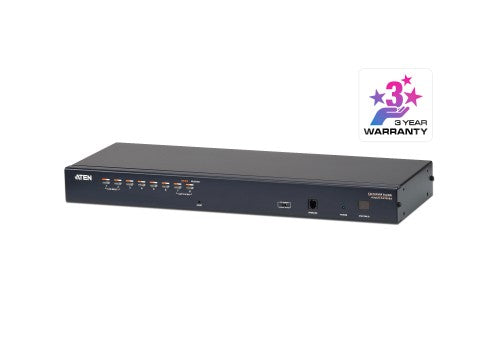

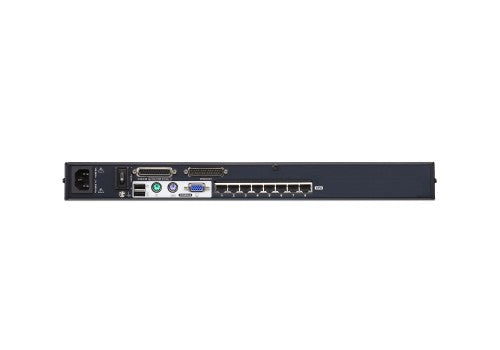

ATEN KH1508A KVM switch Rack mounting Black
554.15 CAD
Skip to product information
3 left
ATEN KH1508A KVM switch Rack mounting Black
Part number
KH1508A
554.15 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.65 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One KVM console control up to 8 directly connected computers
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters*, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
The KH1508A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.
In addition, the switches are compatible with ATEN KVM adapter cable. This allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types.
A KH1508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1508A KVM switch.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.
In addition, the switches are compatible with ATEN KVM adapter cable. This allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types.
A KH1508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1508A KVM switch.
| Video | |
|---|---|
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Console USB ports quantity | 2 |
| Console ports | PS/2 |
| RJ-11 ports quantity | 1 |
| Console RJ-45 ports quantity | 8 |
| AC-in ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,255 s |
| Number of users | 256 user(s) |
| Daisy chain | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power consumption (typical) | 5.1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 17.2" (437.2 mm) |
| Depth | 6.44" (163.6 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.84 lbs (2.65 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Quick installation guide | Yes |
| Manual | Yes |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
| I/O ports | 1 x DB-25 Female 1 x DB-25 Male |
