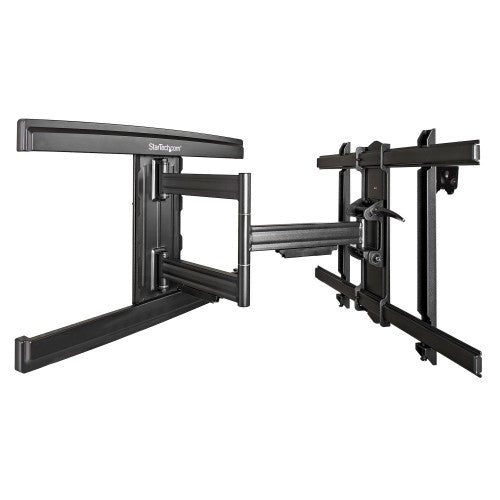

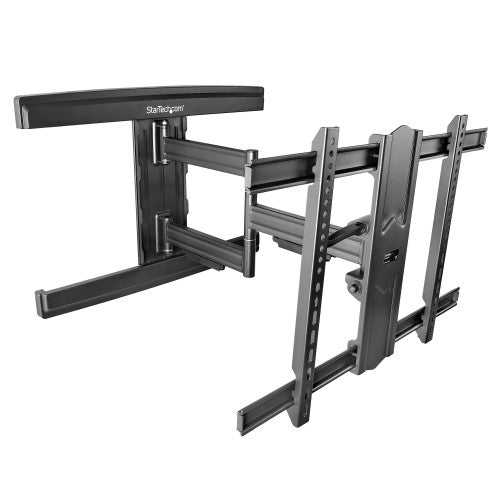

Display Wall Mount | Steel | For up to 80" Displays

With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.

Save Space

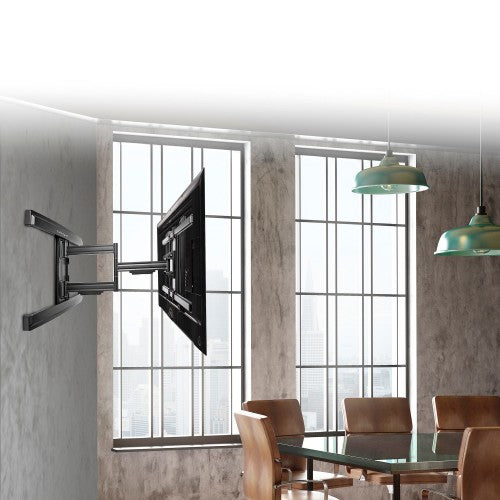

This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space. 

Robust Steel Construction

Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37" to 80" with a weight capacity of 110 lb. (50 kg).

Full-Motion Adjustment

With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.

You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8" (70 mm) from the wall.

Find the Right Viewing Angle

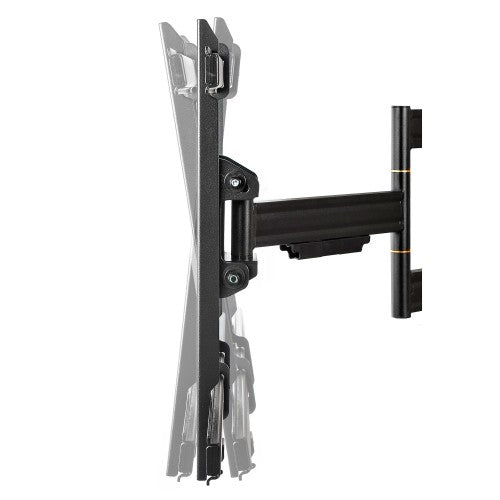

Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.

The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.

Easy to Install

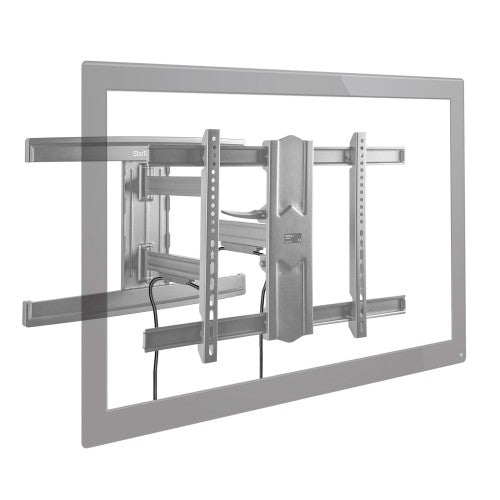

The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.

FPWARTS1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- LARGE 80" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 80 inch (110 lb/50 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.8" (70 mm) from wall or extend to 25.5" (650 mm)
- LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 45.8"/1.1m from left to right

Mounting
Maximum weight capacity	110.2 lbs (50 kg)
Minimum screen size	37"
Maximum screen size	80"
Panel mounting interface	200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	7.87 x 3.94" (200 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Ergonomics
Tilt angle range	-15 - 2°
Swivel angle range	-90 - 90°
Pivot angle	-90 - 90°
Cable management	Yes
Distance to the wall (min)	2.76" (7 cm)
Distance to the wall (max)	25.6" (65 cm)
Design
Product colour	Black
Cable management	Yes
Certification	CE, REACH
Housing material	Steel
Technical details
Mounting type	Wall
Compliance certificates	RoHS

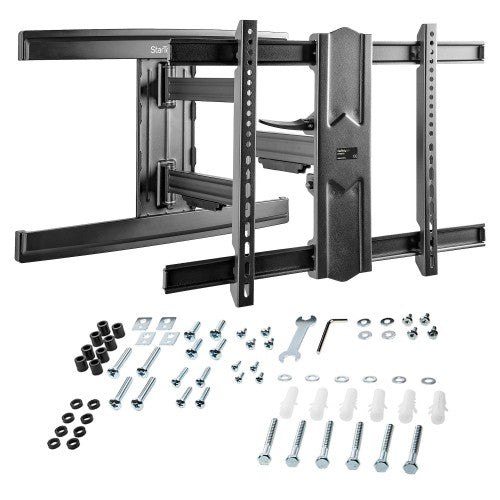

Packaging content
Screws included	Yes
Decorative cover included	Yes
Number of decorative covers included	2 pc(s)
Anchors included	Yes
Number of anchors included	6
Washers included	Yes
Number of washers included	14
Spacer included	Yes
Number of spacers included	16
Number of screws	30
Wrench type	Hexagonal wrench
Manual	Yes
Weight & dimensions
Width	18.3" (465 mm)
Height	36.8" (935 mm)
Weight	28.7 lbs (13 kg)
Depth (max)	25.6" (65 cm)
Packaging data
Package width	21.5" (546 mm)
Package depth	29.1" (740 mm)
Package height	3.74" (95 mm)
Package weight	31.3 lbs (14.2 kg)
Manual	Yes
Logistics data
Master (outer) case width	22" (560 mm)
Master (outer) case length	29.3" (745 mm)
Master (outer) case height	8.27" (210 mm)
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	85299097
Other features
Screw type	M5, M6, M8
Mounting type	Wall
