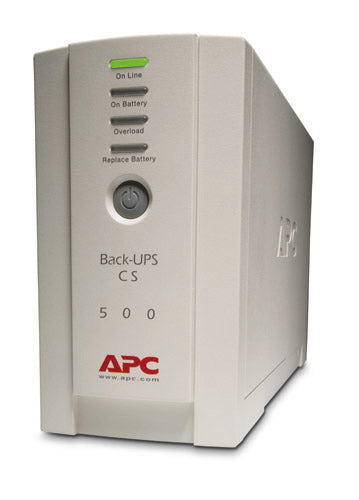

APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)
Part number
BK500EI
$197.95 CAD
Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
Description
This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.Specifications
| Power | |
|---|---|
| Output power capacity | 0.5 kVA |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 310 J |
| Efficiency | 99% |
| Output frequency regulation | 47 - 63 Hz |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB port | Yes |
| Number of output IEC jumpers | 2 |
| Performance | |
| UPS topology | Standby (Offline) |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Waveform | Sine |
| Power protection features | Overload |
| Noise level | 40 dB |
| LED indicators | Battery replacement |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Standby (Offline) |
| Output power capacity | 0.5 kVA |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Output power | 300 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 300 V |
| Surge energy rating | 310 J |
| Efficiency | 99% |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Waveform | Sine |
| Power protection features | Overload |
| Output frequency regulation | 47 - 63 Hz |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 6 year(s) |
| Battery capacity | 83 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |

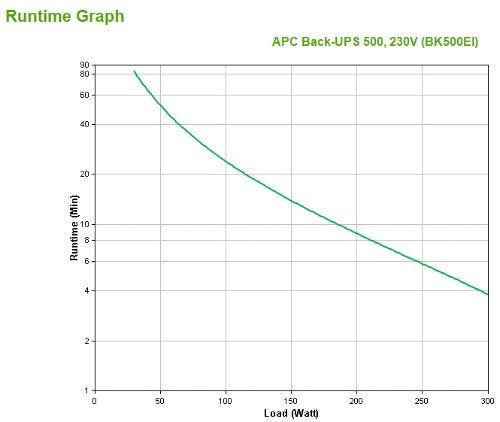

| Typical backup time at half load | 13.8 min |
| Typical backup time at full load | 3.8 min |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Beige |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Cable length | 72" (1.83 m) |
| LED indicators | Battery replacement |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Phone (RJ-11), USB cable |
| Warranty card | Yes |
| Software CD | Yes |

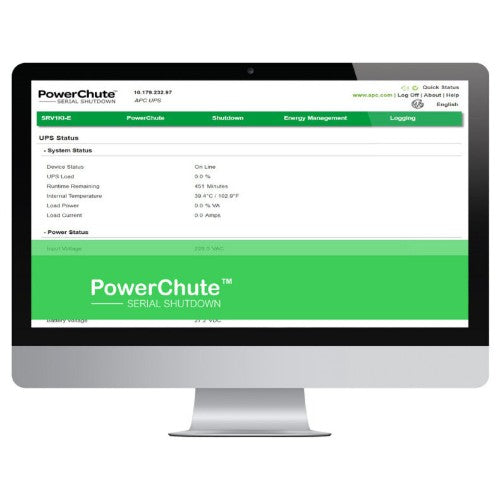

| Bundled software | PowerChute Personal Edition |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Weight & dimensions | |
| Width | 3.58" (91 mm) |
| Depth | 11.2" (284 mm) |
| Height | 6.5" (165 mm) |
| Weight | 13.9 lbs (6.32 kg) |
| Package width | 9.49" (241 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 7.01" (178 mm) |
| Package weight | 15.5 lbs (7.05 kg) |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Phone (RJ-11), USB cable |
| Warranty card | Yes |
| Software CD | Yes |
| Bundled software | PowerChute Personal Edition |
| Package width | 9.49" (241 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 7.01" (178 mm) |
| Package weight | 15.5 lbs (7.05 kg) |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 48 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Filtering | Yes |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
