APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable

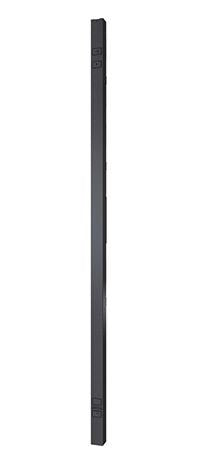

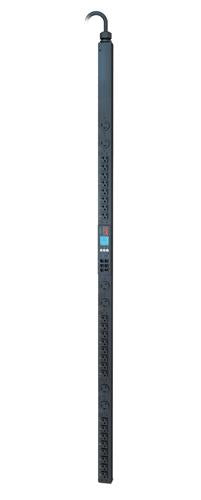

APC Rack PDU 2G power distribution unit (PDU) 30 AC outlet(s) Black
Part number
AP8863
$1,094.86 CAD
208V, 50/60Hz, 1.83m, 5760VA, 2A, 55x44x1829mm, 6.58kg, Black
Description
Rack PDU 2G, Metered, ZeroU, 20A, 120/208V 3Ph, (24) 5-20R (6) L6-20RAPC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Display | LED |
| Product colour | Black |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Ports & interfaces | |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | NEMA 5–20R, NEMA L6-20R |
| Input connection type | NEMA L21-20P |
| Features | |
| LED indicators | Alarm |
| Cable length | 72" (1.83 m) |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Display | LED |
| LED indicators | Alarm |
| Cable length | 72" (1.83 m) |
| Power | |
| Nominal input voltage | 208 V |
| Maximum current | 20 A |
| Nominal output voltage | 120-208 V |
| Load capacity | 5760 VA |
| Maximum total current draw per phase | 16 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.17 x 1.73 x 72" (55 x 44 x 1829 mm) |
| Weight | 14.5 lbs (6.58 kg) |
| Width | 2.17" (55 mm) |
| Depth | 1.73" (44 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.46" (164 mm) |
| Package depth | 4.69" (119 mm) |
| Package height | 79.3" (2014 mm) |
| Package weight | 19.1 lbs (8.66 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.69 x 79.3" (164 x 119 x 2014 mm) |
| Packaging data | |
| Package width | 6.46" (164 mm) |
| Package depth | 4.69" (119 mm) |
| Package height | 79.3" (2014 mm) |
| Package weight | 19.1 lbs (8.66 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.69 x 79.3" (164 x 119 x 2014 mm) |
| Packaging content | |
| Packaging content | Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
