Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT1500LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

C13 Outlets Protect Your Connected Components

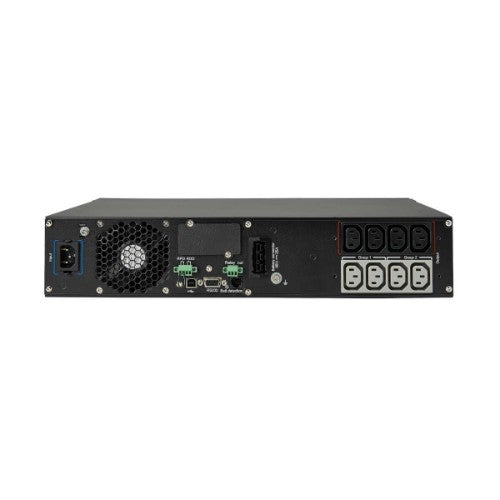

Eight C13 outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.

Versatile Installation Options

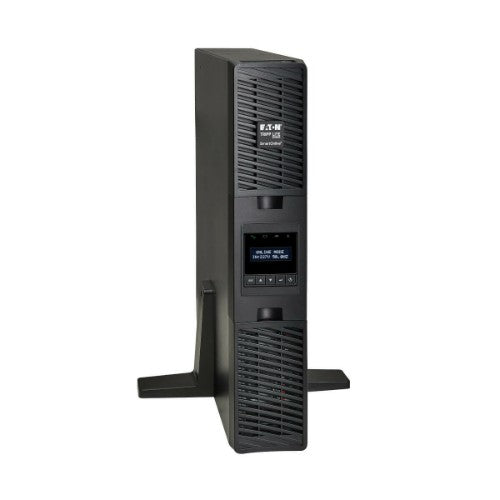

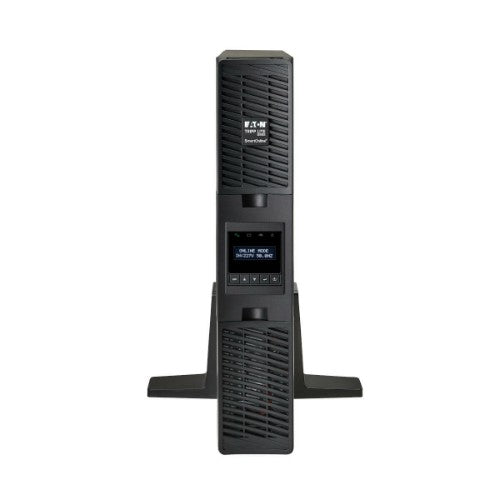

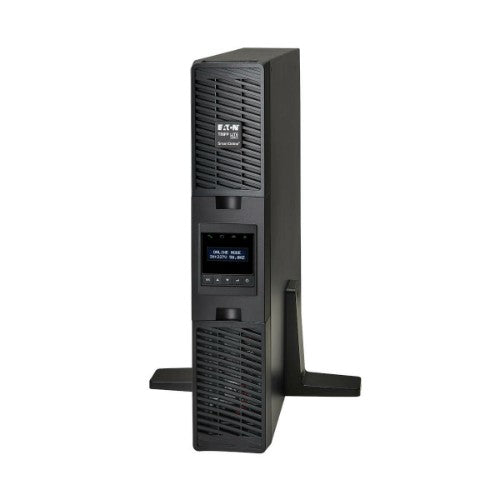

You can mount the SUINT1500LCD2U in just 2U of space in an EIA-standard 19-inch rack using the included hardware. You can also adapt it for tower installation using the included support stands or add the optional RK2PC (sold separately) for 2-post rack mounting. The C14 power inlet accepts a variety of user-supplied input cords.

Power
Output power capacity	1.5 kVA
Output power	1350 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	936 J
Maximum current	7.49 A
Efficiency	93%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Crest factor	3:1
Input frequency	50/60 Hz
Performance
UPS topology	Double-conversion (Online)
Number of input phases	1
EMI/RFI noise filtering	Yes
Surge protection	Yes
Power protection features	Over voltage, Under voltage
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	1.5 kVA
Country of origin	China
Number of input phases	1
Output power	1350 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	936 J
Maximum current	7.49 A
Efficiency	93%
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Power factor	0.9
Crest factor	3:1
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Noise level	45 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Battery recharge time	5.8 h
Typical backup time at half load	12.6 min
Typical backup time at full load	4.5 min
Hot-swap battery	Yes
Cold start	Yes
Design
Form factor	Rackmount
Country of origin	China
Rack capacity	2U
Product colour	Black
Certification	CE; ENERGY STAR Qualified; Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
Cooling type	Active
LED indicators	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
Certification	CE; ENERGY STAR Qualified; Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
Compliance certificates	RoHS
Packaging content
Cables included	Input power cable, Output power cable, Serial, USB cable
Rack mount kit	Yes
Manual	Yes
Screws included	Yes
Cooling
Cooling type	Active
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	17.2" (437.9 mm)
Depth	19.5" (496.1 mm)
Height	3.46" (87.9 mm)
Weight	45 lbs (20.4 kg)
Package width	22.2" (564.9 mm)
Package depth	27.6" (700 mm)
Package height	9.45" (240 mm)
Package weight	58 lbs (26.3 kg)
Packaging data
Cables included	Input power cable, Output power cable, Serial, USB cable
Screws included	Yes
Rack mount kit	Yes
Manual	Yes
Package width	22.2" (564.9 mm)
Package depth	27.6" (700 mm)
Package height	9.45" (240 mm)
Package weight	58 lbs (26.3 kg)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
Master (outer) case width	22.2" (564.9 mm)
Master (outer) case length	27.6" (700 mm)
Master (outer) case height	9.45" (240 mm)
Master (outer) case gross weight	58 lbs (26.3 kg)
