Tripp Lite SMART5000XFMRXL uninterruptible power supply (UPS) Line-Interactive 5 kVA 3750 W 11 AC outlet(s)
6,038.29 CAD
Skip to product information
Out of stock
Tripp Lite SMART5000XFMRXL uninterruptible power supply (UPS) Line-Interactive 5 kVA 3750 W 11 AC outlet(s)
Part number
SMART5000XFMRXL
Sale price
6,038.29 CAD
Regular price
8,192.96 CAD
Taxes and shipping calculated at checkout.
Save
2,154.67 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
82.554 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
- 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
- Supports full output at either 208V or 120V
- 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
- Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
- Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
- AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
- Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
- Built-in Emergency Power Off (EPO) interface with cable
- Sine wave output in AC and battery mode
- Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Half/full load runtime of 20/8.5 minutes with internal batteries

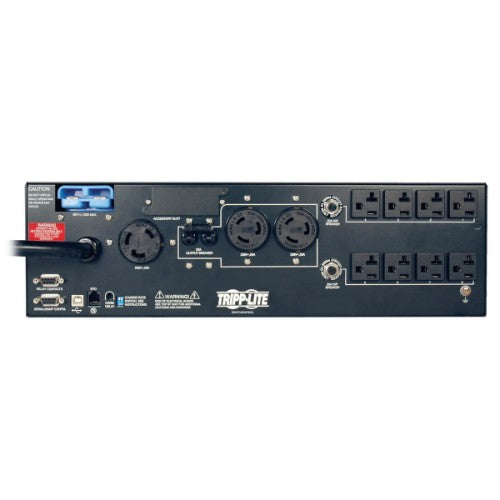

- Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)

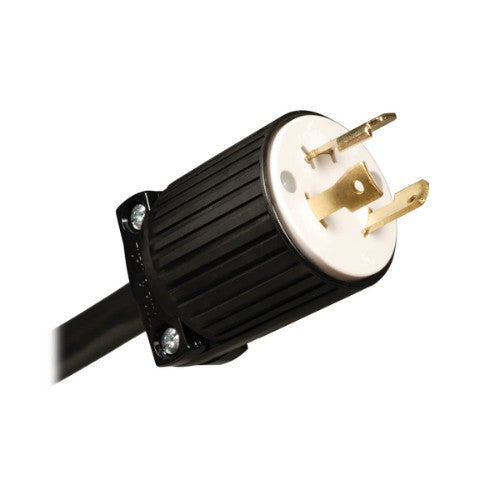

- Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
- Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Included adjustable mounting rails support installation in 4 post 19 inch racks
- UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
- Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
- Supports upright tower placement with optional 2-9USTAND accessory
- 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
- Supports full output at either 208V or 120V
- 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
- Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
- Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
- AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
- Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
- Built-in Emergency Power Off (EPO) interface with cable
- Sine wave output in AC and battery mode
- Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Half/full load runtime of 20/8.5 minutes with internal batteries
- Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)
- Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
- Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Included adjustable mounting rails support installation in 4 post 19 inch racks
- UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
- Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
- Supports upright tower placement with optional 2-9USTAND accessory
| Power | |
|---|---|
| Output power capacity | 5 kVA |
| Output power | 3750 W |
| Input operation voltage (min) | 167 V |
| Input operation voltage (max) | 260 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Surge energy rating | 1020 J |
| Maximum current | 30 A |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.75 |
| Output voltage regulation | +/- 5% |
| Input frequency | 60 Hz |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| AC outlets quantity | 11 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L6-20R, NEMA L6-30R |
| Power plug | NEMA L6-30P |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 2 |
| Performance | |
| UPS topology | Line-Interactive |
| Number of input phases | 1 |
| Response time | 4 ms |
| EMI/RFI noise filtering | Yes |
| Waveform | Sine |
| Power protection features | Over voltage, Under voltage |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 5 kVA |
| Country of origin | Taiwan |
| Number of input phases | 1 |
| Response time | 4 ms |
| Output power | 3750 W |
| Input operation voltage (min) | 167 V |
| Input operation voltage (max) | 260 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Surge energy rating | 1020 J |
| Maximum current | 30 A |
| Efficiency | 97% |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Waveform | Sine |
| Power protection features | Over voltage, Under voltage |
| Power factor | 0.75 |
| Output voltage regulation | +/- 5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Audible alarm(s) | Yes |
| Input frequency | 60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Typical backup time at half load | 20 min |
| Typical backup time at full load | 8.5 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Country of origin | Taiwan |
| Rack capacity | 3U |
| Product colour | Black |
| Certification | UL1778, CSA, NOM, FCC Part 15 Category A, |
| Cable length | 118.1" (3 m) |
| Cooling type | Active |
| LED indicators | Yes |
| Housing material | Steel |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Width | 17.5" (444.5 mm) |
| Depth | 25" (635 mm) |
| Height | 5.25" (133.4 mm) |
| Weight | 143.3 lbs (65 kg) |
| Package width | 23" (584.2 mm) |
| Package depth | 33" (838.2 mm) |
| Package height | 12" (304.8 mm) |
| Package weight | 185 lbs (83.9 kg) |
| Packaging data | |
| Package width | 23" (584.2 mm) |
| Package depth | 33" (838.2 mm) |
| Package height | 12" (304.8 mm) |
| Package weight | 185 lbs (83.9 kg) |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 23" (584.2 mm) |
| Master (outer) case length | 33" (838.2 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 185 lbs (83.9 kg) |
| Certificates | |
| Certification | UL1778, CSA, NOM, FCC Part 15 Category A, |
| Other features | |
| Output connections | 8 x 5-15/20R 2 x L6-20R 1 x L6-30R |
