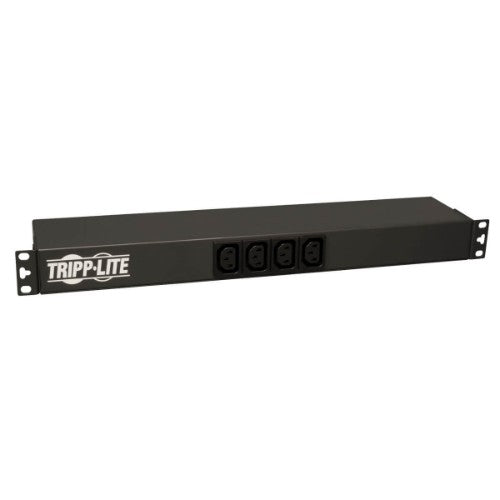

Tripp Lite PDUH20DV power distribution unit (PDU) 14 AC outlet(s) 1U Black
Part number
PDUH20DV
237.48 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.49 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- C20 input with detachable 12 ft. (3.7 m) cord and L6-20P adapter
- 14 total outlets—12 C13 and 2 C19; Compatible with Eaton Tripp Lite power cords
- Switchless design prevents accidental shutdown
- Reversible all-metal housing
- Installs in rack, on wall or under counter

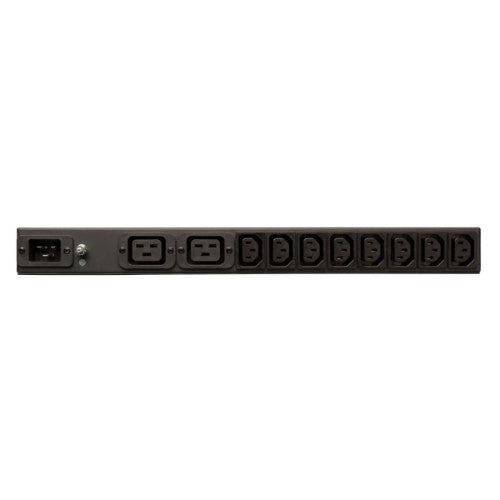

The PDUH20DV 1.6-3.8kW Single-Phase 100-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.

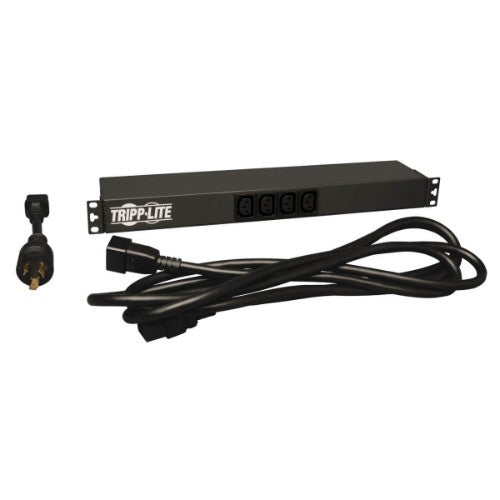

The C20 input plug with detachable 12-ft. (3.66 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
The C20 input plug with detachable 12-ft. (3.66 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL 60950 (USA), CSA (Canada), CE (EU) |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| AC outlets quantity | 14 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Features | |
| LED indicators | Yes |
| Cable length | 145.7" (3.7 m) |
| Certification | UL 60950 (USA), CSA (Canada), CE (EU) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 145.7" (3.7 m) |
| Power | |
| Nominal input voltage | 100-240 V |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL 60950 (USA), CSA (Canada), CE (EU) |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 3.11 lbs (1.41 kg) |
| Width | 17.2" (438 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 10.9" (276.9 mm) |
| Package depth | 20.1" (510.5 mm) |
| Package height | 2.25" (57.2 mm) |
| Package weight | 5.49 lbs (2.49 kg) |
| Packaging data | |
| Package width | 10.9" (276.9 mm) |
| Package depth | 20.1" (510.5 mm) |
| Package height | 2.25" (57.2 mm) |
| Package weight | 5.49 lbs (2.49 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332158960 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 14.4" (365.8 mm) |
| Master (outer) case length | 20.8" (528.3 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 32.8 lbs (14.9 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332158960 |
