ATEN VS1204T video splitter VGA
230.09 CAD
Skip to product information
Out of stock

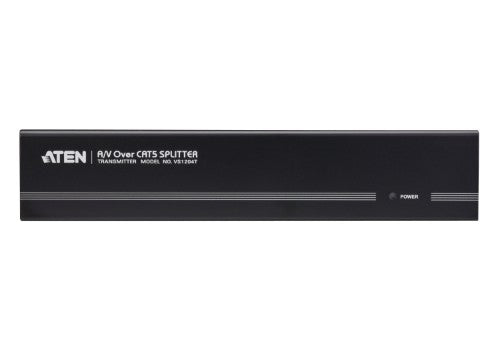

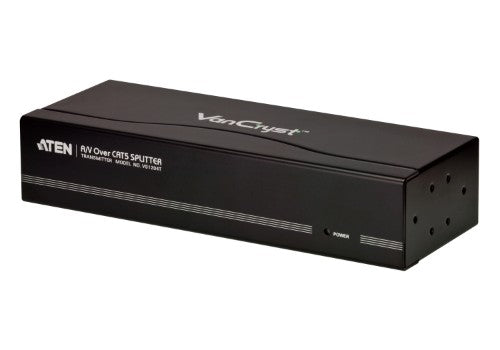

ATEN VS1204T video splitter VGA
Part number
VS1204T
230.09 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.59 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One audio/video input to 4 audio/video outputs via Cat 5e cable
- Supports local display + 4 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | VGA |
| Audio ports quantity | 2 |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |

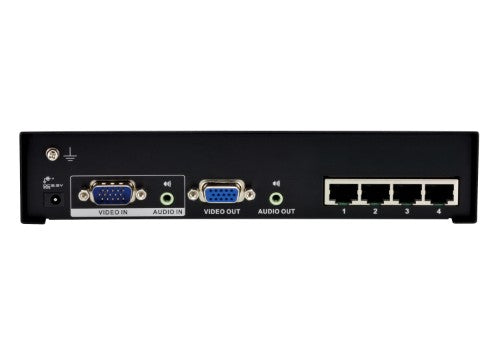

| Connector(s) | HDB-15, Mini Audio, RJ-45, DC-in |
| Cable types supported | Cat5e |
| Ethernet LAN | Yes |
| Features | |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Power LED | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 11811" (300 m) |
| Product colour | Black |
| Certification | RoHS |
| Bandwidth | 225 MHz |
| Network | |
| Cable types supported | Cat5e |
| Ethernet LAN | Yes |
| Power | |
| Power consumption (typical) | 1.33 W |
| AC input voltage | 5 V |
| Weight & dimensions | |
| Weight | 20.8 oz (590 g) |
| Dimensions (WxDxH) | 2.93 x 7.87 x 1.65" (74.5 x 200 x 42 mm) |
| Packaging content | |
| User guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Video | |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Bandwidth | 225 MHz |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | RoHS |
| Indication | |
| Power LED | Yes |
| Technical details | |
| Video out | VGA |
| Plug and Play | Yes |
| Maximum operating distance | 11811" (300 m) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
