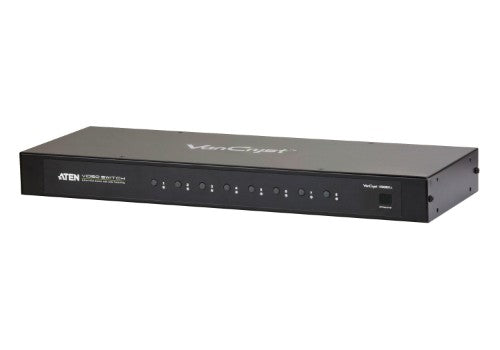

ATEN VS0801A KVM switch Rack mounting Black
207.95 CAD
Skip to product information
Out of stock
ATEN VS0801A KVM switch Rack mounting Black
Part number
VS0801A
207.95 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.1 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Display the video output of up to eight computers on a single VGA display
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
- Supports stereo audio
- Built-in bi-directional RS-232 serial port for high-end system control
- RS-232 Control:
- •Power On Detection – if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
- •Auto Switching – sets the priority for auto switching to a connected port
- •Pushbutton Lock – locks use of the front panel pushbuttons
- Supports up to 300MHz bandwidth for optimal video quality
- Superior video quality – up to 2048 x 1536 @ 60Hz
- Long distance transmission – up to 30 m
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
- Video Dyna Sync™ – Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
- Supports Dynamic DDC to monitor and receive updated EDID information from displays
- * Note: The Port Switching VGA cable does not come with the package and must be purchased separately
The VS0801A 8-Port VGA Switch with Auto Switching,connecting eight audio/video source notebooks to a single monitor or projector with full audio will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc..
VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection,Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance.
VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection,Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance.
| Video | |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | VGA |
| Audio connections | Yes |
| Headphone outputs | 8 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum resolution | 2048 x 1536 pixels |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Rack capacity | 1U |
| Display | |
| Built-in display | No |
| Power | |
| Power consumption (typical) | 1.01 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 6.29" (159.8 mm) |
| Depth | 17.2" (437 mm) |
| Height | 1.73" (44 mm) |
| Weight | 4.63 lbs (2.1 kg) |
