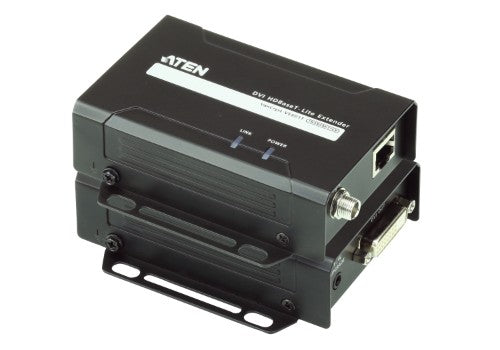

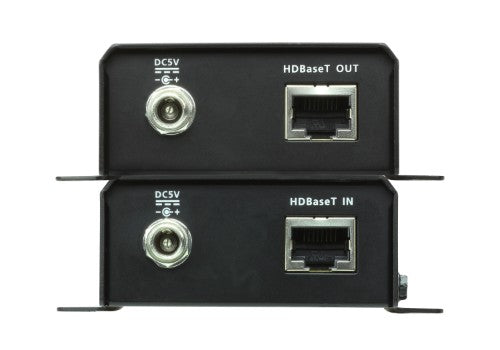

ATEN VE601 AV extender AV transmitter & receiver Black
233.78 CAD
Skip to product information
Out of stock
ATEN VE601 AV extender AV transmitter & receiver Black
Part number
VE601
233.78 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.857 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- HDBaseT Connectivity – extends a DVI 1080p connection up to 70 meters via a single Cat 6a/ATEN 2L-2910 Cat 6 cable
- DVI (3D, Deep color); HDCP 1.4 compliant
- Superior video quality –1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m(Cat 5e/6) / 70m (Cat 6a)
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Impedance | 100 Ω |
| Maximum transfer distance | 2755.9" (70 m) |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Material | Metal |
| HDCP | Yes |
| Bandwidth | 340 MHz |
| Product colour | Black |
| Ports & interfaces | |
| DVI input ports | 1 |
| DVI output ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (transmitter) (max) | 1.85 W |
| Power consumption (receiver) (max) | 4.23 W |
| AC input frequency | 60 Hz |
| Operating voltage | 5 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 3.43 x 4.06 x 1.18" (87 x 103 x 30 mm) |
| Receiver weight | 8.82 oz (250 g) |
| Transmitter dimensions (WxDxH) | 3.43 x 4.06 x 1.18" (87 x 103 x 30 mm) |
| Transmitter weight | 8.82 oz (250 g) |
| Packaging content | |
| Manual | Yes |
