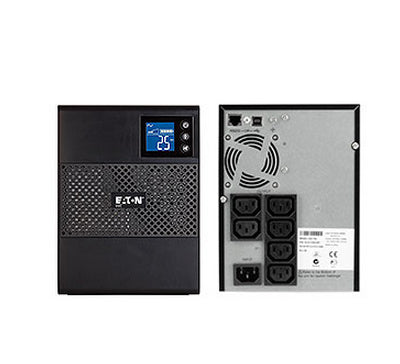

Eaton 5SC750G uninterruptible power supply (UPS) 0.75 kVA 525 W 6 AC outlet(s)
Part number
5SC750G
$578.32 CAD
750VA, 525W, 1 x C14 In, 6 x C13 Out, RS-232, USB, Tower
Description
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.Specifications
| Power | |
|---|---|
| Output power capacity | 0.75 kVA |
| Output power | 525 W |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Input frequency | 50/60 Hz |
| Performance | |
| Waveform | Sine |
| Noise level | 55 dB |
| LED indicators | Yes |
| Features | |
| Output power capacity | 0.75 kVA |
| Output power | 525 W |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Waveform | Sine |
| Noise level | 55 dB |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Typical backup time at full load | 5 min |
| Hot-swap battery | No |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Safety | CE/cTUVus/C-Tick/Ghost/CCC |
| Certification | IEC 62040-2:2006 Cat C1 / CISPR22 Class B / FCC part 15 Class B |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 13.4" (340 mm) |
| Height | 8.23" (209 mm) |
| Weight | 23.1 lbs (10.5 kg) |
| Certificates | |
| Safety | CE/cTUVus/C-Tick/Ghost/CCC |
| Certification | IEC 62040-2:2006 Cat C1 / CISPR22 Class B / FCC part 15 Class B |
