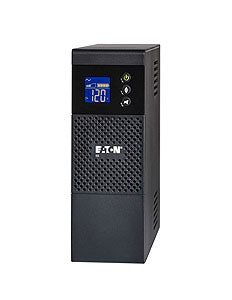

Eaton 5S uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 10 AC outlet(s)
Part number
5S1000LCD
$391.11 CAD
1000VA, 600W, 10 x NEMA 5-15R Out, 1 x NEMA 5-15P In, USB, LCD, Tower
Description
The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.Specifications
| Power | |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 600 W |
| Input operation voltage (min) | 93 V |
| Input operation voltage (max) | 138 V |
| Efficiency | 95% |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| Performance | |
| UPS topology | Line-Interactive |
| Surge protection | Yes |
| Surge protection features | Network |
| Noise level | 25 dB |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 600 W |
| Input operation voltage (min) | 93 V |
| Input operation voltage (max) | 138 V |
| Efficiency | 95% |
| Surge protection | Yes |
| Surge protection features | Network |
| Noise level | 25 dB |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 14 min |
| Typical backup time at full load | 3 min |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | UL 1778, UL497A CE / cTUVus / NOM |
| Cable length | 70.9" (1.8 m) |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 3.39" (86 mm) |
| Depth | 15" (381 mm) |
| Height | 9.8" (249 mm) |
| Weight | 21.4 lbs (9.7 kg) |
| Certificates | |
| Certification | UL 1778, UL497A CE / cTUVus / NOM |
| Other features | |
| Nominal output voltage | 115 V |
| Nominal input voltage | 120 V |
