Tripp Lite PDUMV20-36 power distribution unit (PDU) 14 AC outlet(s) 0U Black
294.69 CAD
Skip to product information
2 left
Tripp Lite PDUMV20-36 power distribution unit (PDU) 14 AC outlet(s) 0U Black
Part number
PDUMV20-36
Sale price
294.69 CAD
Regular price
397.78 CAD
Taxes and shipping calculated at checkout.
Save
103.09 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.22 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

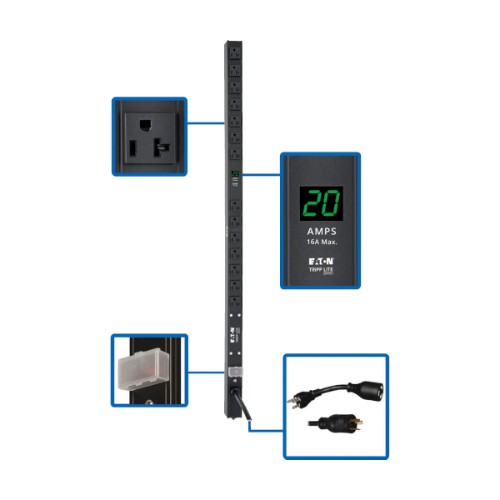

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |

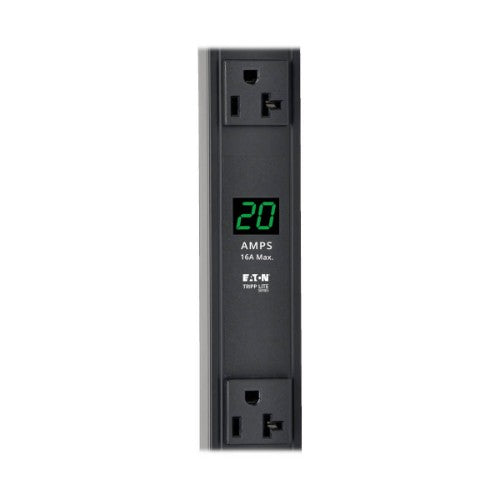

| Display | LED |
| Product colour | Black |
| Certification | UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC |
| Rack capacity | 0U |
| Housing material | Aluminum |
| Ports & interfaces | |
| AC outlets quantity | 14 AC outlet(s) |
| Input connection type | NEMA 5-20P, NEMA L5-20P |

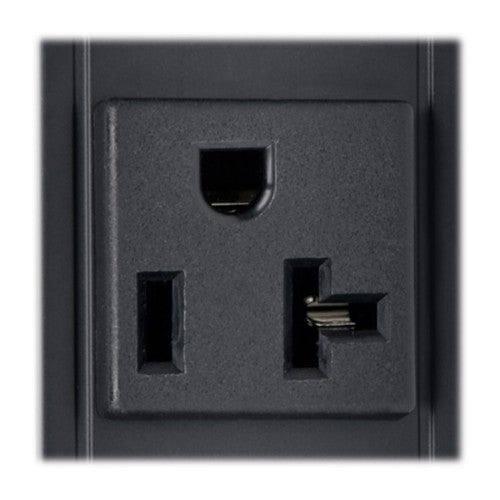

| Output connections | 14 x 5-15/20R |
| Features | |
| LED indicators | Yes |
| Cable length | 181.1" (4.6 m) |
| Certification | UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC |
| Ergonomics | |
| Display | LED |
| LED indicators | Yes |
| Cable length | 181.1" (4.6 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 20 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.75 x 1.25 x 36" (44.5 x 31.8 x 914 mm) |
| Weight | 4.19 lbs (1.9 kg) |
| Width | 1.75" (44.5 mm) |
| Depth | 1.25" (31.8 mm) |
| Height | 36" (914 mm) |
| Package width | 38.9" (989 mm) |
| Package depth | 6.78" (172.2 mm) |
| Package height | 2.6" (66 mm) |
| Package weight | 4.89 lbs (2.22 kg) |
| Package dimensions (WxDxH) | 38.9 x 6.78 x 2.6" (989 x 172.2 x 66 mm) |
| Packaging data | |
| Package width | 38.9" (989 mm) |
| Package depth | 6.78" (172.2 mm) |
| Package height | 2.6" (66 mm) |
| Package weight | 4.89 lbs (2.22 kg) |
| Package dimensions (WxDxH) | 38.9 x 6.78 x 2.6" (989 x 172.2 x 66 mm) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332182828 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 14.2" (359.9 mm) |
| Master (outer) case length | 8.46" (214.9 mm) |
| Master (outer) case height | 39.4" (1000 mm) |
| Master (outer) case gross weight | 31.5 lbs (14.3 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
