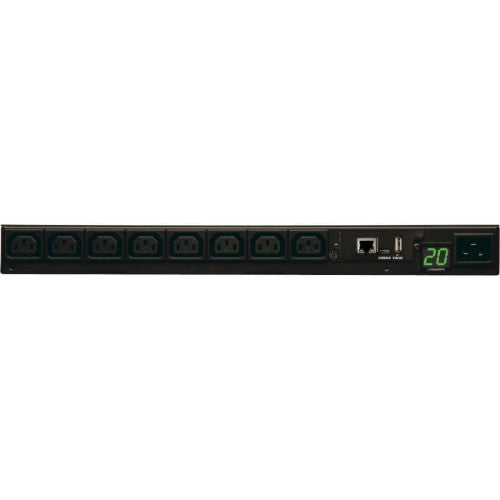

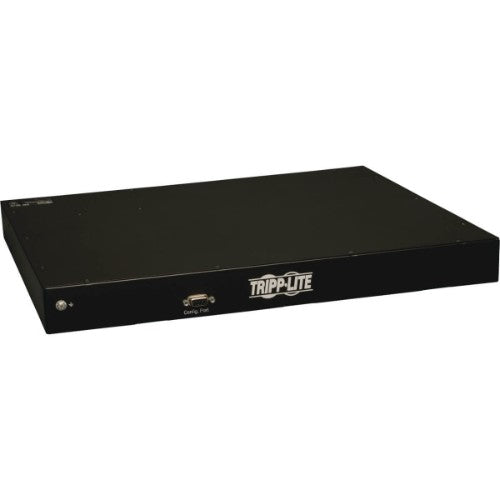

Tripp Lite PDUMNH20HV power distribution unit (PDU) 8 AC outlet(s) 1U Black
670.92 CAD
Skip to product information
Out of stock
Tripp Lite PDUMNH20HV power distribution unit (PDU) 8 AC outlet(s) 1U Black
Part number
PDUMNH20HV
670.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
6.12 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Monitored 16A 208/230V PDU, 1U horizontal rackmount
- Reports voltage, frequency and load level via ethernet interface
- Visual current meter, Reversible housing
- C20 inlet; 8 ft / 2.4m C20 cable with L6-20P plug adapter
- 8 C13 outlets with included plug-lock retention sleeves
- Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
- Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
- TAA Compliant for GSA Schedule purchases
16/20A 230/208V Monitored Power Distribution Unit / rack PDU (rPDU) (agency derated to 16A continuous)
C20 inlet; 8ft / 2.4m C20 cable and NEMA L6-20P plug adapter included
1U horizontal rackmount installation
8 C13 outlets
Lighted display reports output power consumption in amps
Built-in network interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation

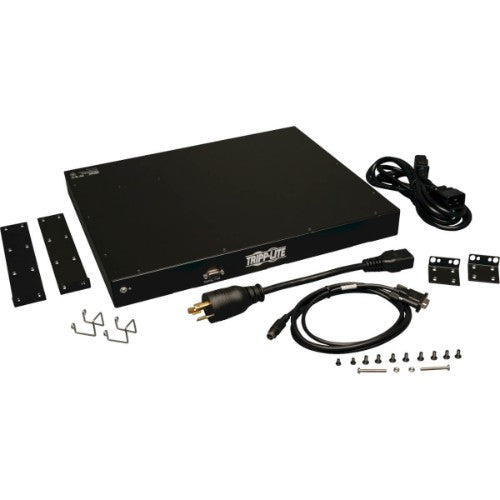

Included cord retention brackets keep vital network equipment plugged in and continuously powered
TAA Compliant for GSA Schedule purchases
C20 inlet; 8ft / 2.4m C20 cable and NEMA L6-20P plug adapter included
1U horizontal rackmount installation
8 C13 outlets
Lighted display reports output power consumption in amps
Built-in network interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
TAA Compliant for GSA Schedule purchases
| Design | |
|---|---|
| PDU types | Monitored |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL 60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico) |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Features | |
| LED indicators | Yes |
| Cable length | 102.4" (2.6 m) |
| Certification | UL 60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 102.4" (2.6 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 20 A |
| Nominal output voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL 60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico) |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 8.99 lbs (4.08 kg) |
| Width | 17.5" (444 mm) |
| Depth | 14.8" (376 mm) |
| Height | 1.73" (44 mm) |
| Package width | 20.7" (527 mm) |
| Package depth | 23" (584.2 mm) |
| Package height | 6" (152.4 mm) |
| Package weight | 13.5 lbs (6.12 kg) |
| Packaging data | |
| Package width | 20.7" (527 mm) |
| Package depth | 23" (584.2 mm) |
| Package height | 6" (152.4 mm) |
| Package weight | 13.5 lbs (6.12 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 00037332160928 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case GTIN (EAN/UPC) | 00037332160928 |
