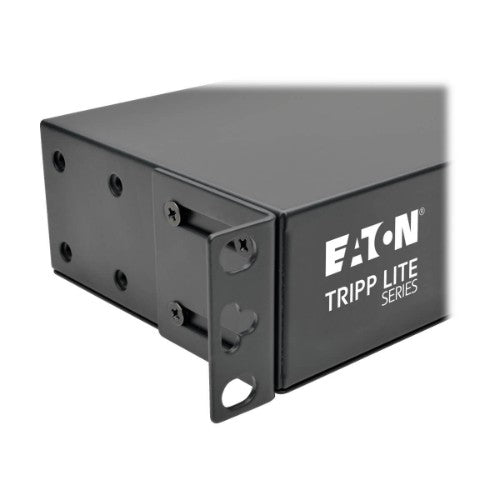

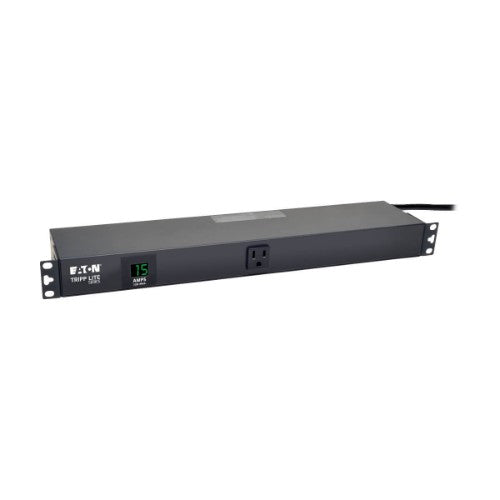

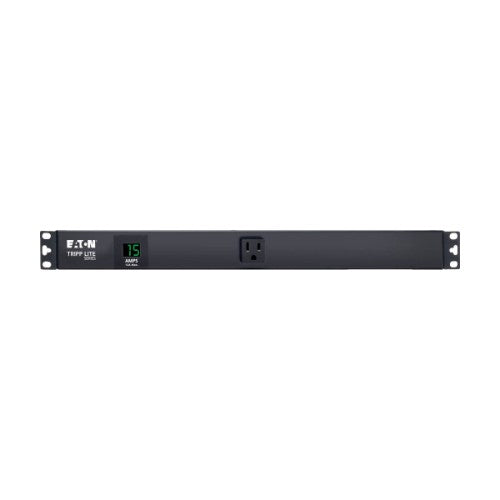

Tripp Lite PDUMH15-RA power distribution unit (PDU) 13 AC outlet(s) 1U Black
198.46 CAD
Skip to product information
2 left
Tripp Lite PDUMH15-RA power distribution unit (PDU) 13 AC outlet(s) 1U Black
Part number
PDUMH15-RA
198.46 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.36 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Certification | UL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03 |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| LED indicators | Yes |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03 |
| Ergonomics | |
| Display | LCD |
| LED indicators | Yes |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 15 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 3.74 x 1.75" (444.5 x 95 x 44.5 mm) |
| Weight | 4.61 lbs (2.09 kg) |
| Width | 17.5" (444.5 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 20.5" (520.7 mm) |
| Package depth | 10" (254 mm) |
| Package height | 2.25" (57.2 mm) |
| Package weight | 5.2 lbs (2.36 kg) |
| Package dimensions (WxDxH) | 20.5 x 10 x 2.25" (520.7 x 254 x 57.2 mm) |
| Packaging data | |
| Package width | 20.5" (520.7 mm) |
| Package depth | 10" (254 mm) |
| Package height | 2.25" (57.2 mm) |
| Package weight | 5.2 lbs (2.36 kg) |
| Package dimensions (WxDxH) | 20.5 x 10 x 2.25" (520.7 x 254 x 57.2 mm) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332183238 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 20.7" (527 mm) |
| Master (outer) case length | 13.7" (349.2 mm) |
| Master (outer) case height | 9.75" (247.6 mm) |
| Master (outer) case gross weight | 32.2 lbs (14.6 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
