Tripp Lite PDU3MV6L2120B power distribution unit (PDU) 27 AC outlet(s) 0U Black
909.10 CAD
Skip to product information
Out of stock
Tripp Lite PDU3MV6L2120B power distribution unit (PDU) 27 AC outlet(s) 0U Black
Part number
PDU3MV6L2120B
909.10 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
6.568 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

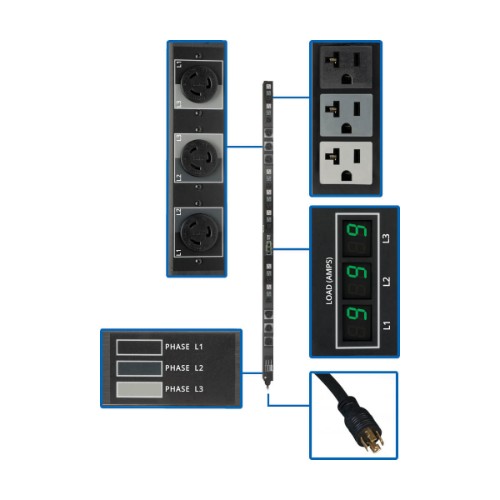

3-Phase Metered PDU, 5.7 kW, 27 outlets (21 5-15/20R, 6 L6-20R), 208/120V output, 6 ft NEMA L21-20P input connection

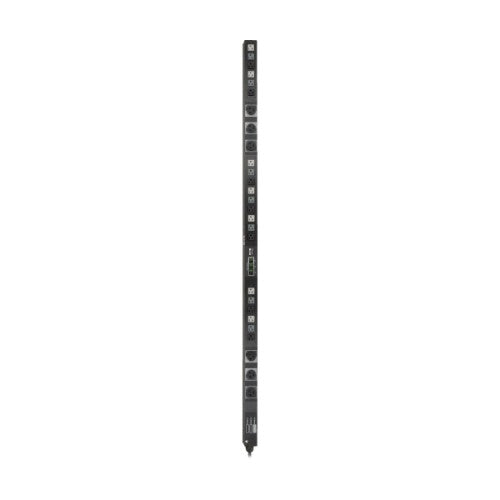

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

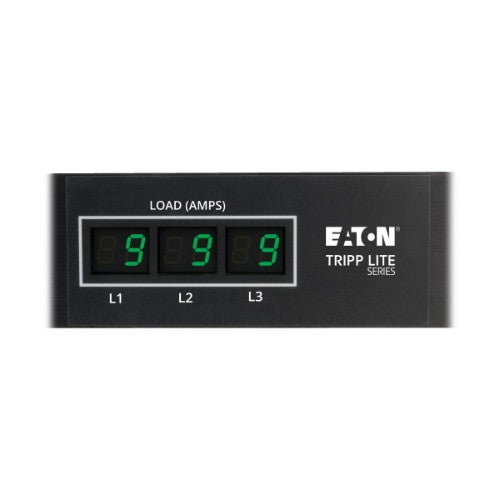

- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

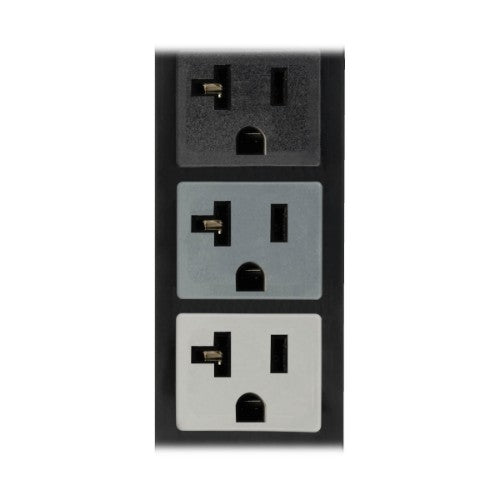

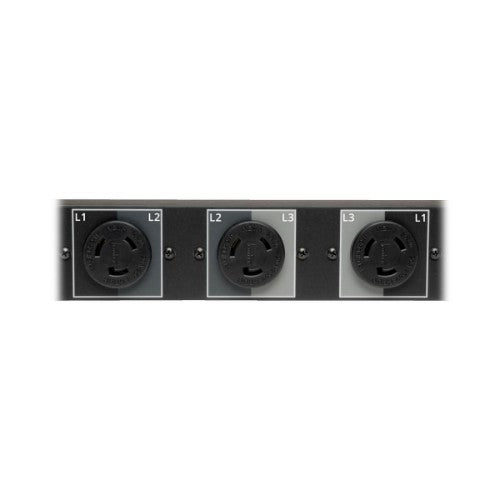

- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)

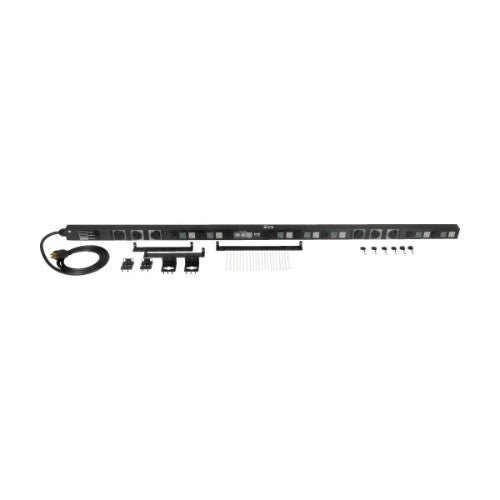

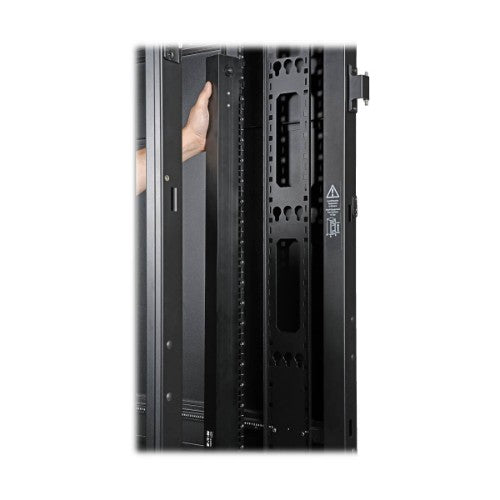

- Toolless button-mount installation; cord retention brackets included
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
- Toolless button-mount installation; cord retention brackets included
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL60950-1, NOM |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | NEMA L21-20P |
| AC outlets quantity | 27 AC outlet(s) |
| Features | |
| Cable length | 72" (1.83 m) |
| Certification | UL60950-1, NOM |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Cable length | 72" (1.83 m) |
| Power | |
| Nominal input voltage | 208 V |
| Maximum current | 16 A |
| Nominal output voltage | 120 V |
| Load capacity | 5700 VA |
| Maximum total current draw per phase | 9.2 A |
| AC input frequency | 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.93 x 2.2 x 70" (49 x 56 x 1778 mm) |
| Weight | 12.6 lbs (5.72 kg) |
| Width | 1.93" (49 mm) |
| Depth | 2.2" (56 mm) |
| Height | 70" (1778 mm) |
| Package width | 6.1" (155 mm) |
| Package depth | 4.33" (110 mm) |
| Package height | 75.8" (1925 mm) |
| Package weight | 14.5 lbs (6.58 kg) |
| Package dimensions (WxDxH) | 6.1 x 4.33 x 75.8" (155 x 110 x 1925 mm) |
| Packaging data | |
| Package width | 6.1" (155 mm) |
| Package depth | 4.33" (110 mm) |
| Package height | 75.8" (1925 mm) |
| Package weight | 14.5 lbs (6.58 kg) |
| Package dimensions (WxDxH) | 6.1 x 4.33 x 75.8" (155 x 110 x 1925 mm) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
