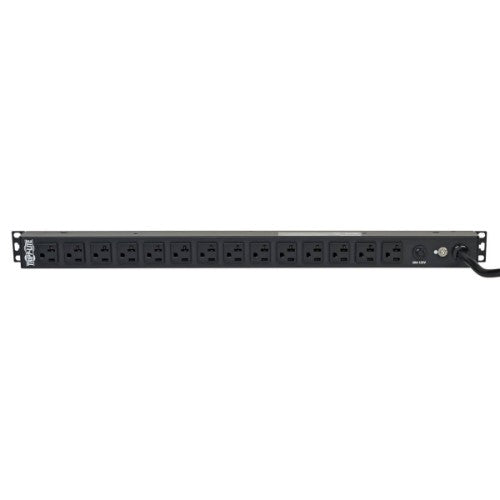

Tripp Lite PDU1420T power distribution unit (PDU) 14 AC outlet(s) 0U Black
310.70 CAD
Skip to product information
Out of stock
Tripp Lite PDU1420T power distribution unit (PDU) 14 AC outlet(s) 0U Black
Part number
PDU1420T
310.70 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.982 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Basic Power Distribution Unit / PDU
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- 0U, 24 in. / 61cm vertical form factor supports installation in 2 or 4 post equipment racks
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
- 20A single phase 120V Basic Power Distribution Unit / PDU
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- 0U, 24 in. / 61cm vertical form factor supports installation in 2 or 4 post equipment racks
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL60950-1 (USA) & CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA L5-20P |
| AC outlets quantity | 14 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1 (USA) & CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 20 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 24 x 2.24 x 1.75" (610 x 57 x 44.5 mm) |
| Weight | 5.6 lbs (2.54 kg) |
| Width | 24" (610 mm) |
| Depth | 2.24" (57 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 2.4" (61 mm) |
| Package depth | 5.8" (147.3 mm) |
| Package height | 27.7" (703.6 mm) |
| Package weight | 6.59 lbs (2.99 kg) |
| Packaging data | |
| Package width | 2.4" (61 mm) |
| Package depth | 5.8" (147.3 mm) |
| Package height | 27.7" (703.6 mm) |
| Package weight | 6.59 lbs (2.99 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332122251 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 6.5" (165.1 mm) |
| Master (outer) case length | 14.2" (360.7 mm) |
| Master (outer) case height | 28.5" (723.9 mm) |
| Master (outer) case gross weight | 40.6 lbs (18.4 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
