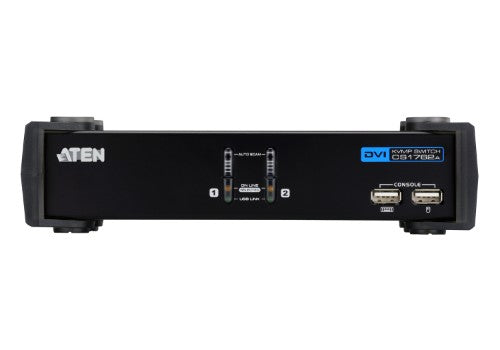

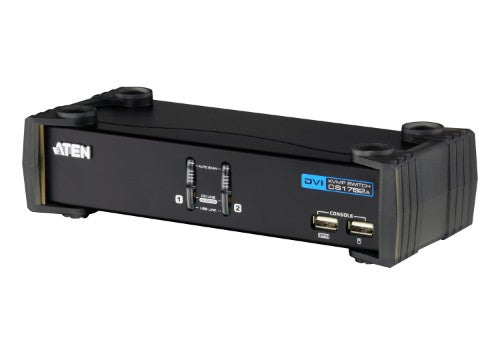

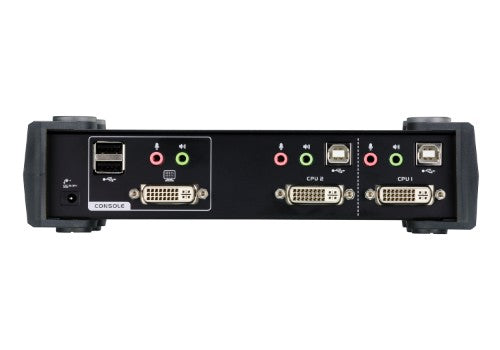

ATEN CS1762A KVM switch Black
246.94 CAD
Skip to product information
Out of stock
ATEN CS1762A KVM switch Black
Part number
CS1762A
246.94 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.73 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One USB console controls two DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports widescreen resolutions
- Superior video quality – 1920 x 1200
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- * 1. PC keyboard combinations emulate Mac/Sun keyboards
- 2. Mac/Sun keyboards only work with their own computer
The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A, USB Type-B |
| Number of microphone inputs | 1 |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | Yes |
| USB version | 2.0 |
| Headphone outputs | 2 |
| DVI-I ports quantity | 1 |
| DC-in jack | Yes |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB hub | Yes |
| HDCP | Yes |
| Performance | |
| Power on detection | Yes |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 9 W |
| Input voltage | 5.3 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Video | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Technical details | |
| USB version | 2.0 |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 3.46" (88 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 25.7 oz (730 g) |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
