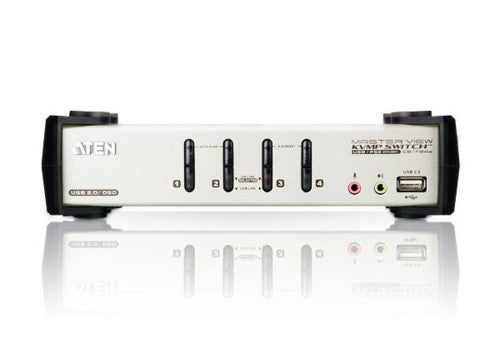

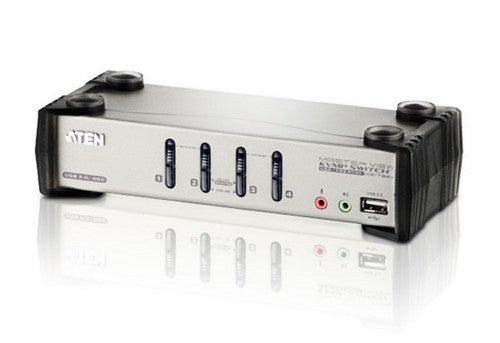

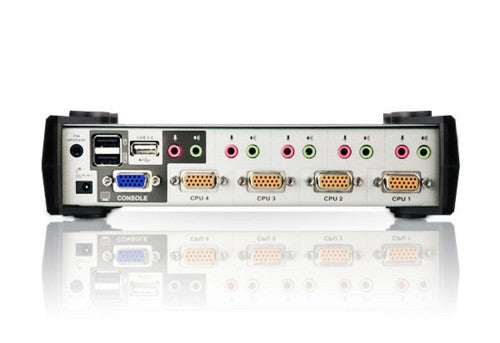

ATEN CS1734B KVM switch Rack mounting Black, Gray
251.15 CAD
Skip to product information
5 left
ATEN CS1734B KVM switch Rack mounting Black, Gray
Part number
CS1734B
251.15 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.78 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
ATEN CS1734B. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: 2K Ultra HD, Maximum resolution: 2048 x 1536 pixels, Maximum digital resolution: 2048 x 1536 pixels. Product color: Black, Gray, Housing material: Metal, LED indicators: Activity, USB. Power source: DC, Output voltage: 5.3 V, Power consumption (typical): 3.4 W. Width: 8.27" (210 mm), Depth: 3.46" (88 mm), Height: 2.19" (55.5 mm)
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Number of microphone inputs | 5 |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | Yes |
| Headphone outputs | 5 |
| USB 2.0 Type-A hub ports quantity | 4 |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | 2K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s |
| Maximum digital resolution | 2048 x 1536 pixels |
| Design | |
| Product colour | Black, Gray |
| Display switch button | Yes |
| Rack mounting | Yes |
| Wired remote switch | No |
| LED indicators | Activity, USB |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 5.3 V |
| Power source | DC |
| Power consumption (typical) | 3.4 W |
| External power adapter | Yes |
| Video | |
| HD type | 2K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2048 x 1536 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 3.46" (88 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 27.5 oz (780 g) |
| Other features | |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
