Tripp Lite SRW12U13 rack cabinet 12U Wall mounted rack Black
492.16 CAD
Skip to product information
Out of stock
Tripp Lite SRW12U13 rack cabinet 12U Wall mounted rack Black
Part number
SRW12U13
Sale price
492.16 CAD
Regular price
667.77 CAD
Taxes and shipping calculated at checkout.
Save
175.61 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
17.24 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 200 lbs (90.7 kgs)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 12.75 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)

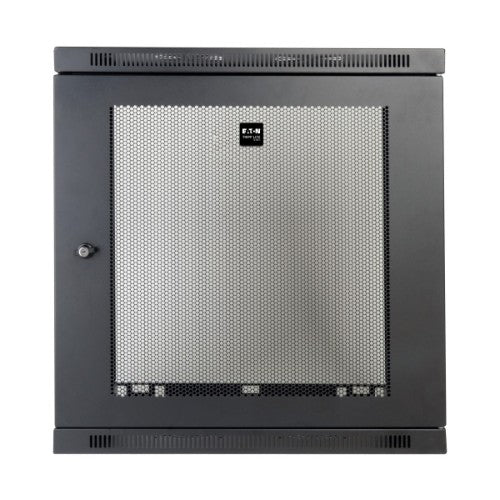

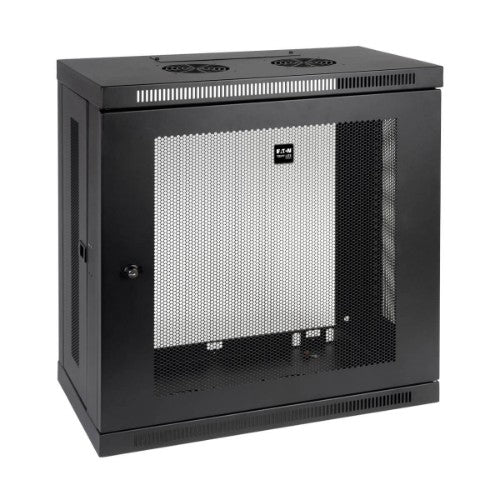

The SRW12U13 SmartRack® 12U Low-Profile Patch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, back offices, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

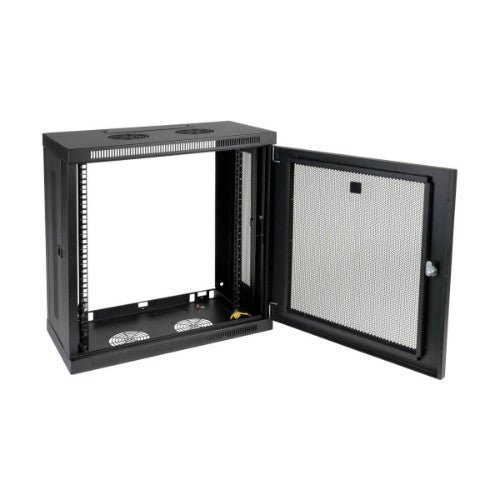

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

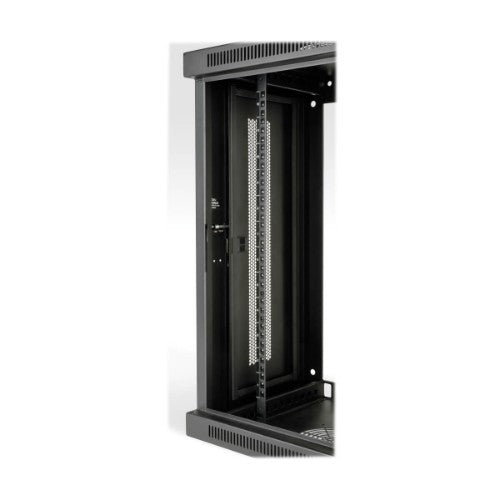

The SRW12U13 comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 12.75 inches deep, such as patch panels and shallow network switches.
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW12U13 comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 12.75 inches deep, such as patch panels and shallow network switches.
| Weight & dimensions | |
|---|---|
| Package width | 25.6" (650.2 mm) |
| Package depth | 27.6" (700 mm) |
| Package height | 15.7" (400 mm) |
| Package weight | 37.9 lbs (17.2 kg) |
| Width | 23.6" (599.9 mm) |
| Depth | 13" (330.2 mm) |
| Height | 25.1" (637 mm) |
| Weight | 37.9 lbs (17.2 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Type | Wall mounted rack |
| Rack capacity | 12U |
| Maximum weight capacity | 200 lbs (90.7 kg) |
| Product colour | Black |
| Certification | RoHS |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 25.6" (650.2 mm) |
| Package depth | 27.6" (700 mm) |
| Package height | 15.7" (400 mm) |
| Package weight | 37.9 lbs (17.2 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Logistics data | |
| Master (outer) case width | 25.6" (650.2 mm) |
| Master (outer) case length | 27.6" (700 mm) |
| Master (outer) case height | 15.7" (400 mm) |
| Master (outer) case gross weight | 37.9 lbs (17.2 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
