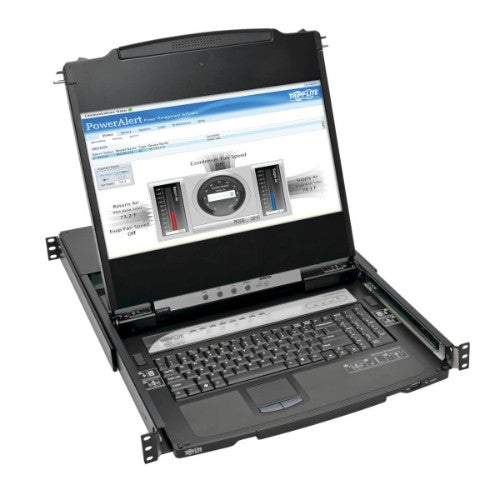

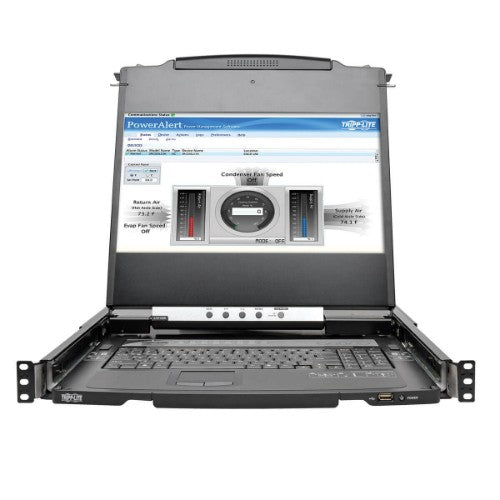

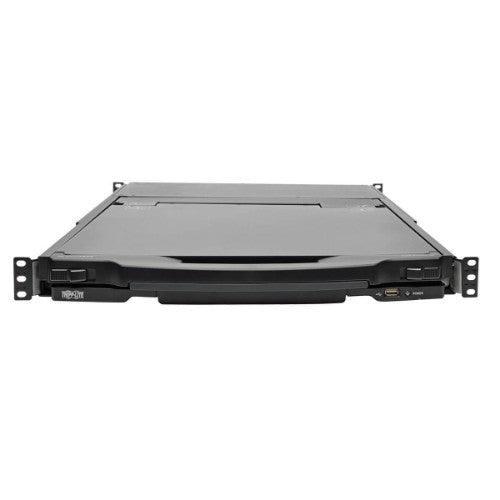

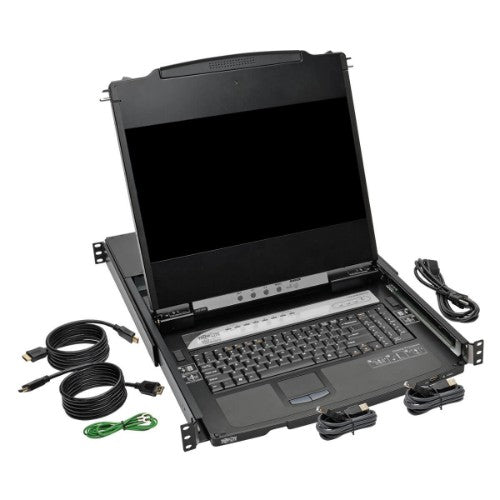

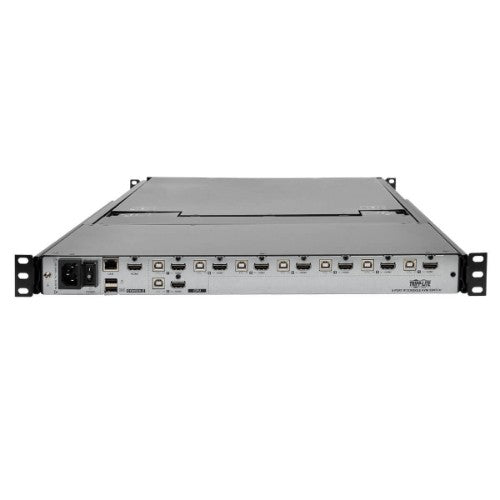

The B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.

The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.

The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
USB 2.0 ports quantity	8
HDMI ports quantity	8
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Security algorithms	128-bit SSL, 256-bit AES, HTTPS, SSL/TLS, WPA2-RADIUS
Ethernet LAN (RJ-45) ports	1
Performance
Maximum resolution	1920 x 1080 pixels
Scan interval	255 s
Number of users	64 user(s)
Security algorithms	128-bit SSL, 256-bit AES, HTTPS, SSL/TLS, WPA2-RADIUS
Design
Product colour	Black
Rack mounting	Yes
Wired remote switch	Yes
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	UL 60950-1 (USA), CAN/CSA, FCC Part 15 Class A, CE
Rack capacity	1U
Housing material	Steel
Country of origin	Taiwan
Display
Built-in display	Yes
Display	LCD
On Screen Display (OSD)	Yes
Display diagonal	17"
Power
AC input frequency	50 - 60 Hz
Input current	1 A
Input voltage	100-250 V
Video
Maximum resolution	1920 x 1080 pixels
Features
Country of origin	Taiwan
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	26.8" (680 mm)
Height	18.9" (480.1 mm)
Weight	26 lbs (11.8 kg)
Package width	26.7" (677.9 mm)
Package depth	32.7" (830.1 mm)
Package height	5.8" (147.3 mm)
Package weight	42.1 lbs (19.1 kg)
Packaging data
Package width	26.7" (677.9 mm)
Package depth	32.7" (830.1 mm)
Package height	5.8" (147.3 mm)
Package weight	42.1 lbs (19.1 kg)
Certificates
Certification	UL 60950-1 (USA), CAN/CSA, FCC Part 15 Class A, CE
Technical details
Compliance certificates	RoHS
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Country of origin	Taiwan
Harmonized System (HS) code	8471.80.1000
