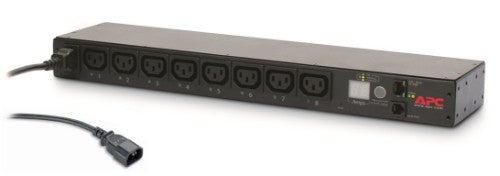

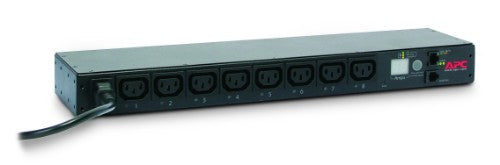

APC AP7920B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
1,012.23 CAD
Skip to product information
Out of stock
APC AP7920B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Part number
AP7920B
1,012.23 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.45 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
| Design | |
|---|---|
| PDU types | Metered, Switched |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
| Features | |
| Cable length | 78" (1.98 m) |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Ergonomics | |
| Cable length | 78" (1.98 m) |
| Power | |
| Nominal input voltage | 200-230 V |
| Maximum power | 2300 W |
| Maximum current | 10 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 39.4 - 590551.2" (1 - 15000 m) |
| Weight & dimensions | |
| Weight | 5 lbs (2.27 kg) |
| Width | 17.5" (445 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.73" (44 mm) |
| Package width | 18.5" (470 mm) |
| Package depth | 13.5" (343 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 7.61 lbs (3.45 kg) |
| Packaging data | |
| Package width | 18.5" (470 mm) |
| Package depth | 13.5" (343 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 7.61 lbs (3.45 kg) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 915.89 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 915.89 |
