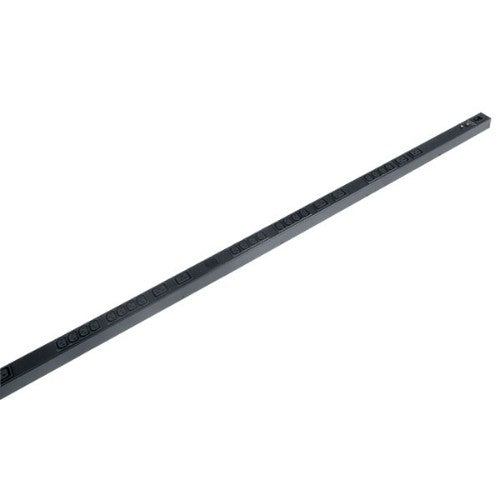

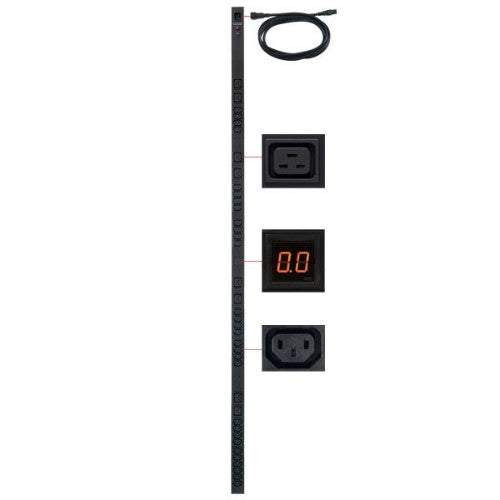

The CyberPower 38-outlet (38 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVT38F) provides 200/230V 20A output. It distributes power to 38 IEC-320 (8-C19 and 30-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 38 IEC-320 (8-C19 and 30-C13) output receptacles
- Single NEMA L6-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 200/230V AC - 50/60Hz
- Front LCD for real-time load monitoring
- 70" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord
- 38 IEC-320 (8-C19 and 30-C13) output receptacles
- Single NEMA L6-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 200/230V AC - 50/60Hz
- Front LCD for real-time load monitoring
- 70" 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | UL60950_1 ETL, CSA C22.2 |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA L6-20P |
| AC outlets quantity | 38 AC outlet(s) |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | UL60950_1 ETL, CSA C22.2 |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Display | LCD |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 200-230 V |
| Maximum current | 20 A |
| Nominal output voltage | 200-230 V |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL60950_1 ETL, CSA C22.2 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Weight & dimensions | |
| Weight (imperial) | 10.5 lbs |
| Dimensions (W x D x H) (imperial) | 1.75 x 2.25 x 70" |
| Technical details | |
| Compliance certificates | RoHS |
