4K HDMI Balun | Visually Lossless Compression | IR Support

This HDMI over CAT6 extender lets you transmit your HDMI signal over a CAT6 cable up to 330 ft. (100 m) away. The extender supports Ultra HD 4K with support for 3D and the accompanying digital audio.

Long-Distance Transmission

Extend your HDMI signal to up to 330 ft. (100 m) with this HDMI over Ethernet extender. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

The extender also works to extend an infrared (IR) signal, enabling you to control your video source from the remote location.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) UHD resolution, providing four times the picture quality of high-definition (1080p), ensuring a crystal-clear picture that's ideal for displaying your 4K video content in office buildings, airports, retail settings and more.

Plus, because the extender supports 1080p and lower resolutions at up to 460 feet away, you can comfortably use this extender to make any video source look great.

Compatible with HDCP 2.2 Devices

Connect your HDMI devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20L is backed by 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Maintains astonishing picture quality up to 330 ft. (100 m) away, with support for UltraHD 4K over non-proprietary CAT6 cabling
- Also supports HD 1080p video resolutions at distances up to 460 ft. (140 m)
- Hassle-free, professional installation with included mounting brackets

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Audio output channels	7.1 channels
Maximum refresh rate	60 Hz
Maximum transfer distance	5511.8" (140 m)
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Material	Metal

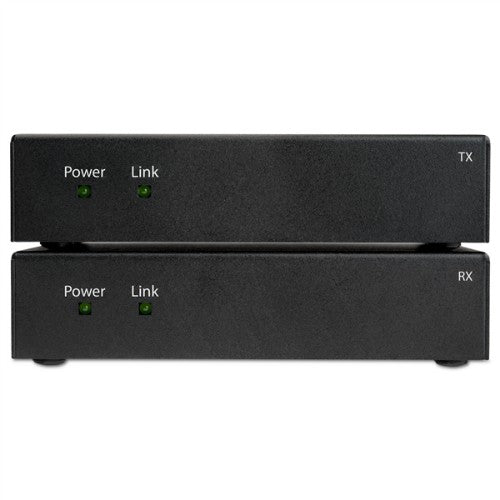

LED indicators	Link, Power
HDCP	Yes
Product colour	Black
Chipset	Norelsys NS 5730, NS5731
HDCP version	1.4/2.2

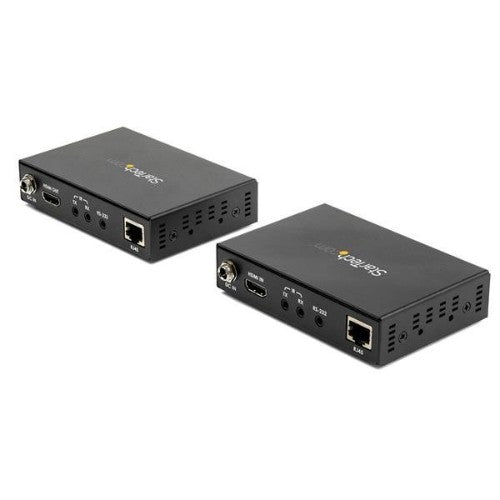

Ports & interfaces
Remote (IR) output	2
Remote (IR) input	2
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
Serial ports quantity	2
DC-in jack	Yes
Connectivity technology	Wired
Power
Output current	2 A
Power plug type	Type M
AC input voltage	110 - 240 V
External power adapter	Yes
Operating voltage	5 V
Operational conditions
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 55 °C
Operating temperature (T-T)	-5 - 40 °C
Weight & dimensions
Weight	9.56 oz (271 g)
Width	4.37" (111 mm)
Height	1.02" (26 mm)
Depth	2.99" (76 mm)
Packaging data
Package width	9.76" (248 mm)
Package weight	3.13 lbs (1.42 kg)
Package height	3.74" (95 mm)
Package depth	7.28" (185 mm)
Packaging content
Mounting brackets included	Yes
Quick start guide	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Logistics data
Master (outer) case width	20.5" (520 mm)
Master (outer) case length	16.5" (420 mm)
Master (outer) case height	11" (280 mm)
Products per master (outer) case	10 pc(s)
