Tripp Lite PDUH32HV19 power distribution unit (PDU) 4 AC outlet(s) 1U Black
456.83 CAD
Skip to product information
Out of stock
Tripp Lite PDUH32HV19 power distribution unit (PDU) 4 AC outlet(s) 1U Black
Part number
PDUH32HV19
456.83 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.21 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

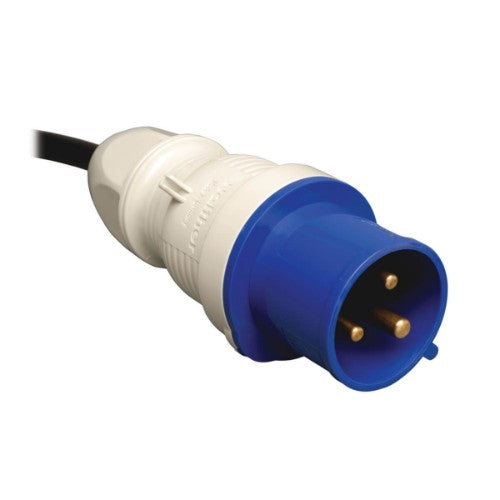

- IEC 309 32A Blue (2P+E) input with 3.6 m power cord

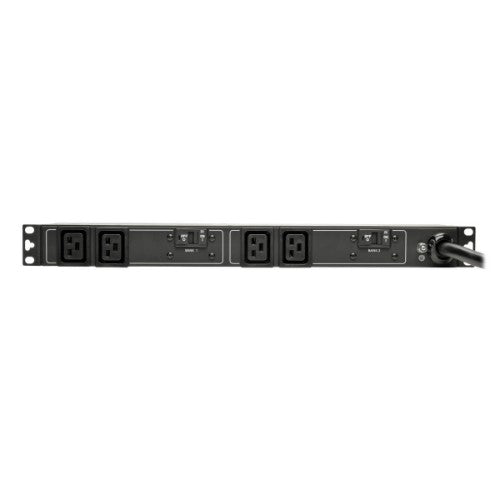

- 4 rear C19 outlets; Compatible with Eaton Tripp Lite power cords
- Switchless design prevents accidental shutdown
- Reversible all-metal housing
- Dual 20A circuit breakers protect against overloads
The PDUH32HV19 7.7kW Single-Phase 200-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH32HV19 features four rear C19 outlets. The IEC 309 32A Blue (2P+E) input plug with 3.6 m cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Type | Single-phase |
| Product colour | Black |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | IEC309 |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C19 coupler |
| Features | |
| Cable length | 144.1" (3.66 m) |
| Ergonomics | |
| Cable length | 144.1" (3.66 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum power | 7700 W |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 6.33 lbs (2.87 kg) |
| Width | 17.5" (445 mm) |
| Depth | 3.75" (95.3 mm) |
| Height | 1.77" (45 mm) |
| Package width | 20.2" (514 mm) |
| Package depth | 11.3" (286 mm) |
| Package height | 2.99" (76 mm) |
| Package weight | 7.08 lbs (3.21 kg) |
| Packaging data | |
| Package width | 20.2" (514 mm) |
| Package depth | 11.3" (286 mm) |
| Package height | 2.99" (76 mm) |
| Package weight | 7.08 lbs (3.21 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332183207 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 20" (508 mm) |
| Master (outer) case length | 21" (533.4 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 35.9 lbs (16.3 kg) |
| Products per master (outer) case | 5 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332183207 |
