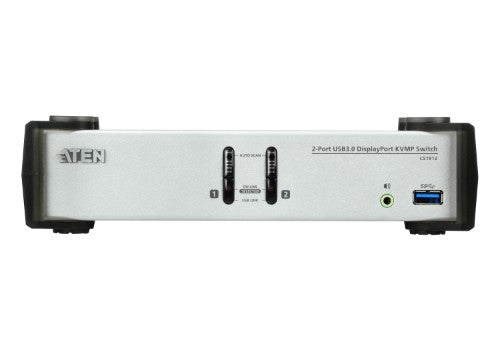

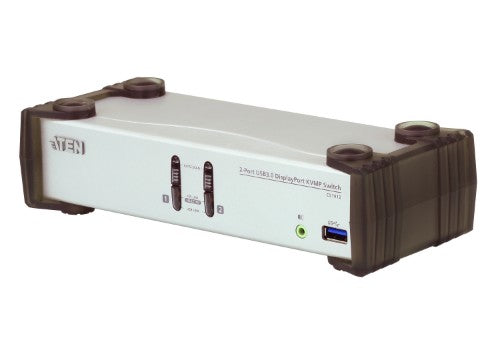

ATEN CS1912 KVM switch Black, Gray
245.61 CAD
Skip to product information
Out of stock
ATEN CS1912 KVM switch Black, Gray
Part number
CS1912
245.61 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.73 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 2-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
- One USB console controls 2 computers and 2 USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse1
- Independent switching of KVM, USB, and Audio focus
- Superior video quality – up to 3840 x 2160 @ 30 Hz
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort 1.1 compliant, HDCP compliant2
- Supports HD audio through DisplayPort3
- Full bass response for high-quality 2.1 channel surround sound systems
- Power On Detection – if a computer is powered off, the CS1912 automatically switches to the next powered-on computer
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
- Hot pluggable – add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
- Mac keyboard support and emulation5
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A, USB Type-B |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |
| Console ports | DisplayPort, USB A |
| USB hub | Yes |
| HDCP | Yes |
| Performance | |
| Hot-Plug support | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Automatic switching | Yes |
| Design | |
| Product colour | Black, Gray |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Status, USB |
| Housing material | Metal, Plastic |
| Automatic switching | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 5 V |
| Power consumption (typical) | 3.3 W |
| External power adapter | Yes |
| System requirements | |
| Mac operating systems supported | Yes |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 3.46" (88 mm) |
| Depth | 8.27" (210 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 25.7 oz (730 g) |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Push button | Yes |
| Automatic switching | Yes |
