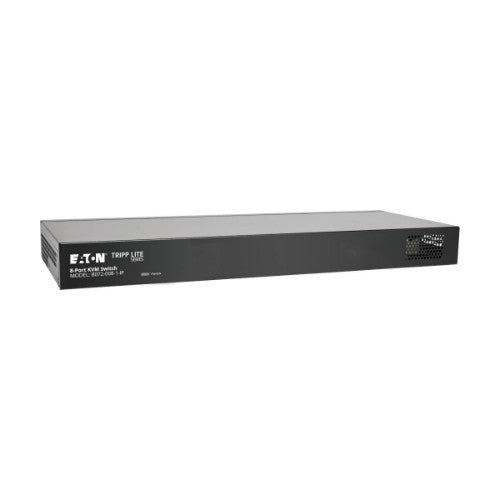

Tripp Lite’s B072-008-1-IP KVM Switch is the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

This KVM switch can be accessed and controlled remotely, so there’s no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

The B072-008-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-008-1-IP.

Saves Space and Money
Mounts in a standard 19 in. rack
Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room
Control this KVM switch over IP: remote access means there’s no need to travel to the server room or network closet
Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
Supports both IPv4 and IPv6

Simplifies IT Tasks
On-screen display, hot keys and remote toolbar for easy use
Free NetCommander-AXS Management Software gives you remote access and control over all your Tripp Lite NetCommander IP KVM switches (B070 and B072 series)
Supports VGA video resolutions up to 1920 x 1080 @ 60 Hz

2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port
BIOS-level control of any brand and model server, regardless of the server’s condition and network connectivity
Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were directly stored on it
Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit; a B078-101-USB-1 Server Interface Unit can be used for Virtual Media support, but only at speeds up to 1Mbps
Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
System-sent messages to SNMP server notify you of network failures
Supports RADIUS and LDAP/S authentication
Log tracks events such as logins, reboots and network setting changes on your installation

Advanced Security Features
Multi-level password protection: create administrator accounts with full access and user accounts with limited access
Supports TLS 1.2 security protocol
You can install SSL certificates to ensure secure transactions between web servers and browsers

Built to Last
Flash-upgradable firmware over the network
Heavy-duty steel housing stands up to frequent use

Ports & interfaces
Number of computers controlled	8
Video port type	VGA
Audio connections	No
USB 2.0 ports quantity	3
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	12
Network
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Security algorithms	128-bit AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN (RJ-45) ports	12
Performance
Maximum resolution	1920 x 1080 pixels
Number of users	2 user(s)
Security algorithms	128-bit AES, HTTPS, SSL/TLS
Design
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
Certification	UL 60950-1 (USA), CSA (Canada), FCC Part 15 Class A, CE IEC 60950-1
Rack capacity	1U
Country of origin	Taiwan
Display
Built-in display	Yes
Video
Maximum resolution	1920 x 1080 pixels
Features
Country of origin	Taiwan
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	19" (482.6 mm)
Depth	6.68" (169.7 mm)
Height	1.72" (43.7 mm)
Weight	4.59 lbs (2.08 kg)
Package width	10.3" (261.6 mm)
Package depth	23" (584.2 mm)
Package height	4.3" (109.2 mm)
Package weight	6.59 lbs (2.99 kg)
Packaging data
Package width	10.3" (261.6 mm)
Package depth	23" (584.2 mm)
Package height	4.3" (109.2 mm)
Package weight	6.59 lbs (2.99 kg)
Packaging content
Manual	Yes
Certificates
Certification	UL 60950-1 (USA), CSA (Canada), FCC Part 15 Class A, CE IEC 60950-1
Technical details
Compliance certificates	RoHS
Logistics data
Country of origin	Taiwan
Master (outer) case width	11.1" (281.9 mm)
Master (outer) case length	23.5" (596.9 mm)
Master (outer) case height	9.6" (243.8 mm)
Master (outer) case gross weight	15 lbs (6.8 kg)
Products per master (outer) case	2 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332183443
Harmonized System (HS) code	85176200
