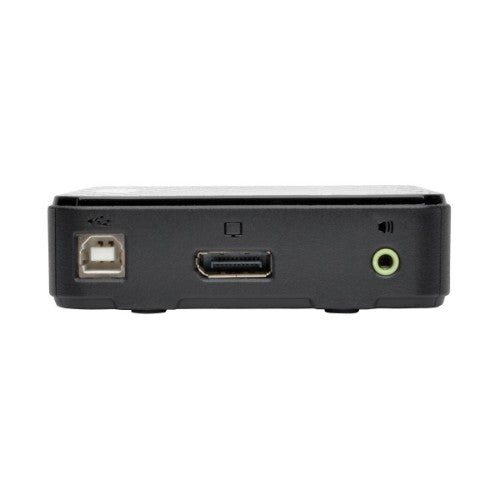

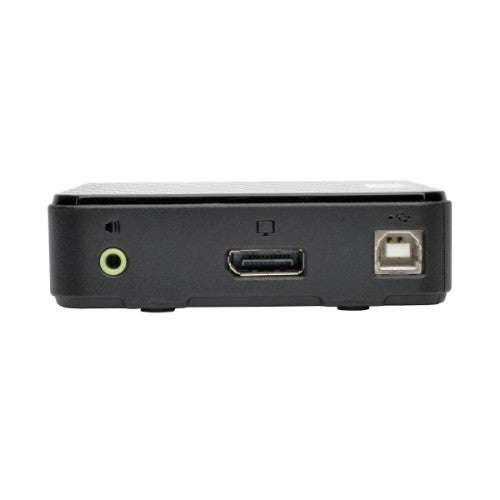

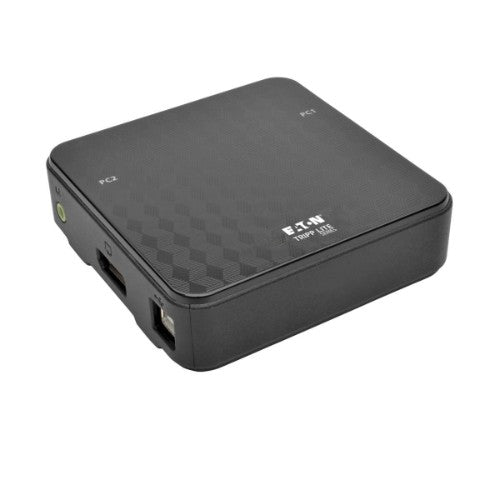

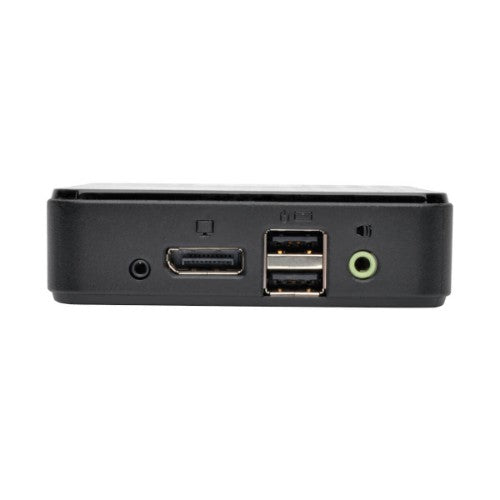

Tripp Lite B004-DP2UA2-K KVM switch Black
359.58 CAD
Skip to product information
Out of stock
Tripp Lite B004-DP2UA2-K KVM switch Black
Part number
B004-DP2UA2-K
359.58 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.73 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Switch between computers via remote selector, hotkeys or mouse
- Supports DisplayPort Dual Mode (DP++), EDID and HDCP
- Upgradable firmware
- Compatible with Windows®, Mac®, Linux and Sun
The desktop B004-DP2UA2-K 2-Port DisplayPort KVM Switch lets you access, control, boot and reboot two 4K DisplayPort computers using one DisplayPort monitor, keyboard and mouse. Switching between computers is quick and simple using a connected remote port selector, keyboard hotkeys or mouse scroll wheel. The B004-DP2UA2-K supports Multi-Stream Transport (MST), so you can use multiple monitors via one DisplayPort connector.
By adding a powered USB 2.0 hub (sold separately) to the switch, you increase functionality by allowing USB peripherals—such as printers, hard drives, scanners, webcams and thumb drives—to be shared between computers. You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks. Because audio and the B004-DP2UA2-K can be switched independently of each other, you can access one computer while listening to audio on the other.
All necessary cables are included. The B004-DP2UA2-K supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, 2.1-channel surround sound, HD Audio, EDID and HDCP. All connected computers receive the console monitor’s EDID information to ensure top video quality.
The B004-DP2UA2-K is easy to set up with no software or drivers to install. It supports Windows, Mac, Linux and Sun. It also supports DisplayPort Dual Mode (DP++) for directly outputting single-link DVI or HDMI signals via adapter.
By adding a powered USB 2.0 hub (sold separately) to the switch, you increase functionality by allowing USB peripherals—such as printers, hard drives, scanners, webcams and thumb drives—to be shared between computers. You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks. Because audio and the B004-DP2UA2-K can be switched independently of each other, you can access one computer while listening to audio on the other.
All necessary cables are included. The B004-DP2UA2-K supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, 2.1-channel surround sound, HD Audio, EDID and HDCP. All connected computers receive the console monitor’s EDID information to ensure top video quality.
The B004-DP2UA2-K is easy to set up with no software or drivers to install. It supports Windows, Mac, Linux and Sun. It also supports DisplayPort Dual Mode (DP++) for directly outputting single-link DVI or HDMI signals via adapter.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| USB 2.0 ports quantity | 3 |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| HDCP | Yes |
| Performance | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Country of origin | China |
| Display | |
| Built-in display | No |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Features | |
| Country of origin | China |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 6.5" (165.1 mm) |
| Depth | 3.5" (88.9 mm) |
| Height | 1.8" (45.7 mm) |
| Weight | 20.8 oz (590 g) |
| Package width | 6.7" (170.2 mm) |
| Package depth | 9.4" (238.8 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 25.7 oz (730 g) |
| Packaging data | |
| Package width | 6.7" (170.2 mm) |
| Package depth | 9.4" (238.8 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 25.7 oz (730 g) |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, IR, USB |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 12.9" (327.7 mm) |
| Master (outer) case length | 19.4" (492.8 mm) |
| Master (outer) case height | 7.6" (193 mm) |
| Master (outer) case gross weight | 17.3 lbs (7.85 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332193176 |
| Harmonized System (HS) code | 8471.80.1000 |
